The JIABAIDA (JBD) NMC 10S 37V 20A Battery Management System (BMS) represents an advanced electronic solution meticulously engineered to monitor, safeguard, and optimize lithium-ion battery packs utilizing Nickel Manganese Cobalt (NMC) chemistry. This BMS is designed to cater to a variety of applications, ranging from portable electronic devices to small electric vehicles.

Features:

1. Voltage Balancing
2. Comprehensive Protection
3. Advanced Algorithms
4. High Accuracy
5. Temperature Monitoring
6. Communication Capabilities
7. User-Friendly Interface

Specifications:

1. Battery Chemistry: Nickel Manganese Cobalt (NMC)
2. Battery Configuration: 10 series cells
3. Nominal Voltage: 37 volts
4. Maximum Continuous Discharge Current: 20 amps
5. Cell Voltage Monitoring Range: 0 volts to 4.2 volts per cell
6. Temperature Monitoring Range: -40°C to 85°C
7. Voltage Balancing Accuracy: ±5 millivolts (mV)
8. Current Balancing Accuracy: ±50 milliamps (mA)

Package Includes:

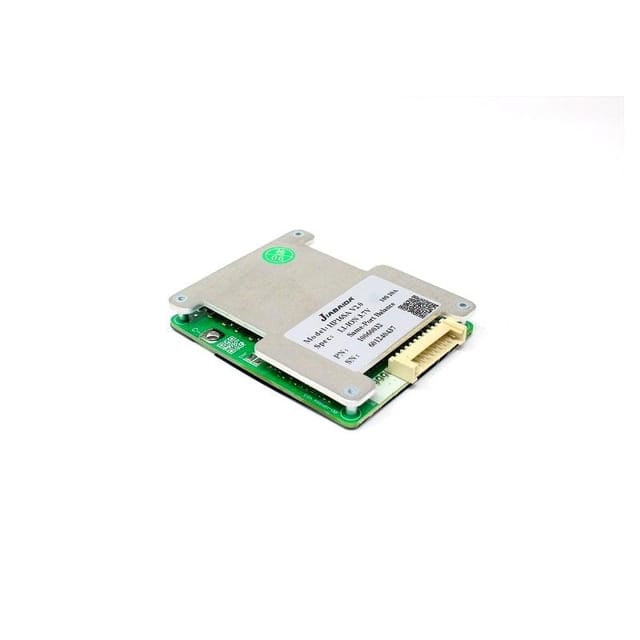

1 x JIABAIDA (JBD) NMC 10S 3.7V 20A Battery Management System-HP16SA V2.0
