The IR2104 is a high voltage, high speed power MOSFET and IGBT driver with dependent high- and low- side referenced output channels. Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction. The logic input is compatible with standard CMOS or LSTTL output, down to 3.3 V logic.

The output drivers feature a high pulse current buffer stage designed for minimum driver cross-conduction. The floating channel can be used to drive an N-channel power MOSFET or IGBT in the high-side configuration which operates from 10 V to 600 V.

Note: Image may vary from actual product in terms of Manufacturer/Brand name according to the availability.

Features:

1. Floating channel designed for bootstrap operation
2. Fully operational to +600 V
3. Tolerant to negative transient voltage, dV/dt immune
4. Gate drive supply range from 10 V to 20 V
5. Undervoltage lockout
6. 3.3 V, 5 V, and 15 V input logic compatible
7. Cross-conduction prevention logic
8. Internally set deadtime
9. High-side output in phase with input
10. Shutdown input turns off both channels
11. Matched propagation delay for both channels

For detailed specifications and diagrams, please go through Datasheet in Attachments.

Package Includes:

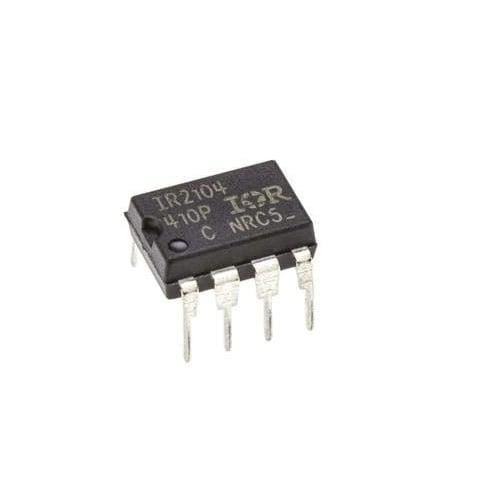

1 x IR2104 PDIP-8 Gate Driver
