IR Gesture click

Description of product

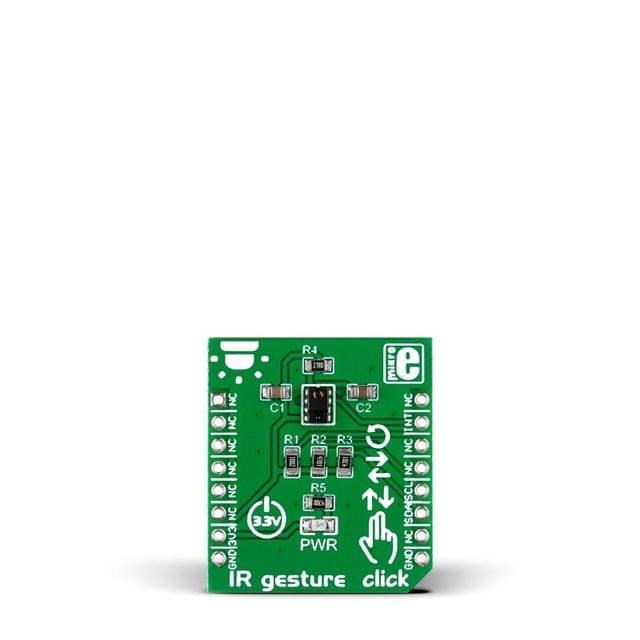

IR Gesture click is a mikroBUS add-on board that enables contactless gesture recognition, along with ambient light and proximity sensing capabilities with the APDS-9960 IC. This sensor integrates an LED and four directional photodiodes that receive the reflecting light. An internal gesture engine deduces the velocity, direction and distance of nearby objects (while cancelling the ambient light). You can implement a variety of gestures, from basic directional swipes (up, down, left or right) to more complex combinations. Since the chip can work as a proximity sensor, the gesture engine can be configured to wake up automatically when a user’s hand approaches. The board communicates with the target board MCU through the mikroBUS I2C interface, with an additional hardware inerrupt pin (INT). IR Gesture click uses a 3.3V power supply.


Type Motion
Applications Gesture detection, color sensing, ambient light sensing
On-board modules      APDS-9960 IC
Key Features Infrared based gesture recognition engine. One LED and 4 directional photodiodes
Key Benefits Light substraction and cross-talk cancellation. Can function as a proximity, ambient light, RGB and gesture sensor
Interface GPIO,I2C
Input Voltage 3.3V
Compatibility mikroBUS
Click board size S (28.6 x 25.4 mm)
