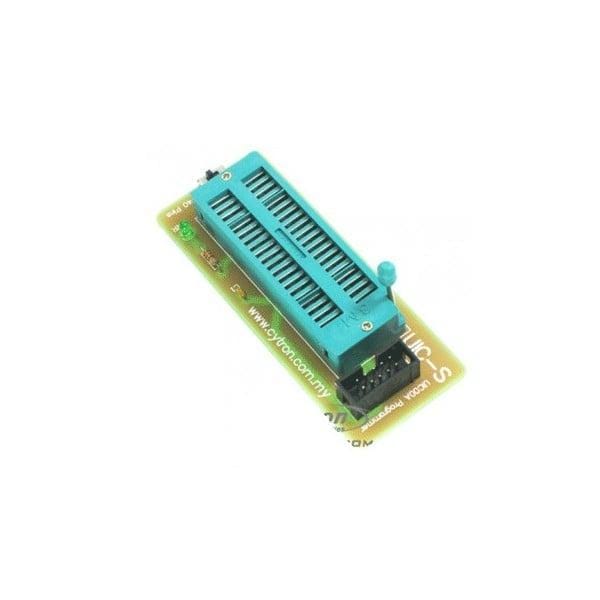

This is ICSP Programmer Socket – UIC-S. The UIC-S is a socket for UIC00A/B, USB ICSP PIC Programmer. Combine with UIC00A/B, the user will get a standalone USB programmer. The 40-pin ZIF (Zero Insert Force) socket provide an easy to plug and unplug PIC during development (download program).

It supports 18-pin, 28-pin & 40-pin 8-bit PIC (PIC16F & PIC18F) microcontroller.

Supported PIC (not limited to)

PIC16F84A (18-pin)
PIC16F628A (18-pin)
PIC16F876A (28-pin)
PIC16F886 (28-pin)
PIC18F2550 (28-pin)
PIC16F877A (40-pin)
PIC16F887 (40-pin)
PIC18F452 (40-pin)
PIC18F458 (40-pin)
PIC18F4520 (40-pin)
PIC18F4580 (40-pin)
PIC18F4550 (40-pin)

Features :

1. No external power needed
2. Power Indicator LED on board
3. Fit perfectly with UIC00A and UIC00B
4. Support 18-pin, 28-pin, and 40-pin 8-bit PIC microcontroller.
5. Selector to program 18-pin or 28-pin&40-pin PIC
6. Come with 40-pin ZIF socket for ease of plug and unplug of PIC

Package Includes :

1 x ICSP Programmer Socket – UIC-S
