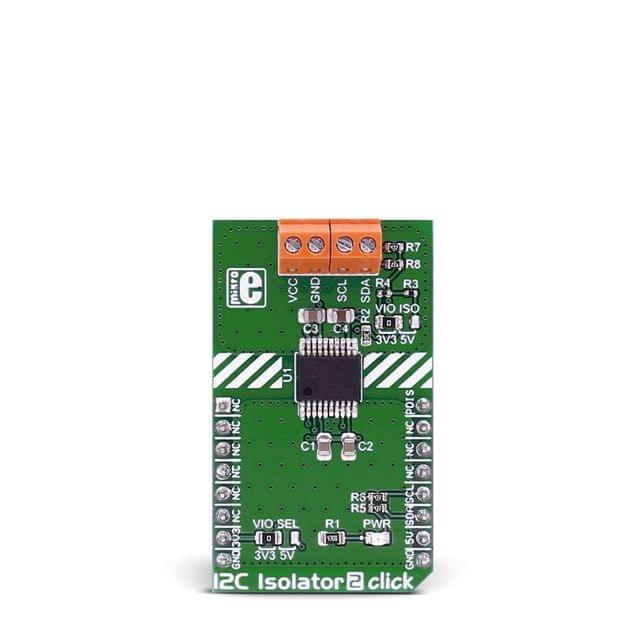

I2C Isolator 2 click provides I2C lines and power isolation for slave devices. It carries the ADM3260 dual I2C isolator with an integrated DC-to-DC converter. I2C Isolator 2 click is designed to run on either 3.3V or 5V power supply. The click communicates with the target microcontroller over an I2C interface with additional functionality provided by the PWM pin on the mikroBUS™ line.

ADM3260 features

The ADM3260 is a hot swappable digital and power isolator with two nonlatching, bidirectional communication channels, supporting a complete isolated I2C interface, and an integrated isolated dc-to-dc converter, supporting up to 150 mW of isolated power conversion.

The bidirectional I2C channels eliminate the need for splitting I2C signals into separate transmit and receive signals for use with standalone optocouplers.

How it works

The screw terminal on the board can be connected to I2C and power connections of an I2C slave device.

Specifications

TypeIsolator
ApplicationsIsolated I2C, SMBus, and PMBus interfaces, multilevel I2C interfaces, central office switching, telecommunication and data communication equipment, etc
On-board modulesADM3260 dual I2C isolator
Key Featuresup to 150 mW output power
Key Benefitsintegrated DC-to-DC converter
InterfaceGPIO,I2C
Peripherals includetwo pars of screw terminals
Input Voltage5V,5V
CompatibilitymikroBUS
Click board sizeM (42.9 x 25.4 mm)
