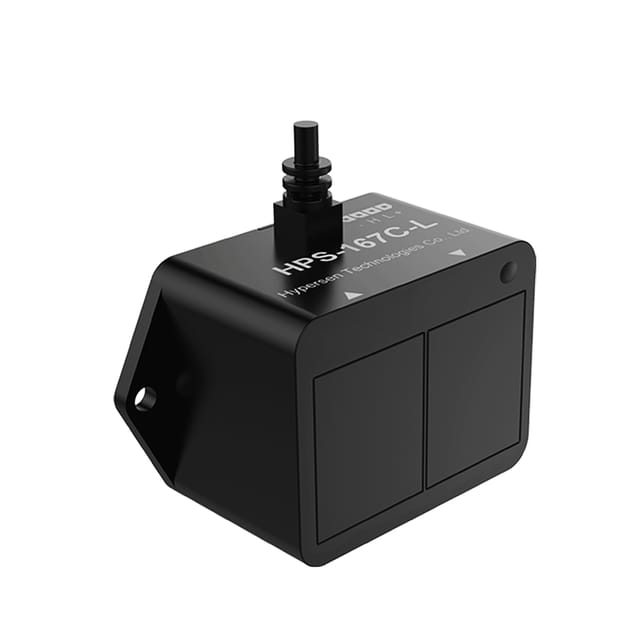

The HPS-167C-L is an advanced Time-of-Flight (ToF) infrared ranging sensor designed for precise and reliable distance measurements. With high SNR and integrated ambient light, temperature, and color compensation algorithms, it delivers fast and accurate readings. It features an adaptive data output rate of 6-54Hz, making it suitable for a wide range of applications.

Features:

1. High SNR: Ensures clear and reliable signal measurements.
2. Extended Range: Provides accurate distance ranging up to 50 meters.
3. Compensation Algorithms: Integrated ambient light, temperature, and color compensation for enhanced accuracy.
4. Adaptive Data Output Rate: Adjustable from 6 to 54Hz for optimal performance.
5. Durable Design: Equipped with an ABS+aviation aluminum waterproof case for Tenet Technetronicsst protection.

Specifications:

1. Model: HPS-167C-L
2. Size: 53x32x26.5mm
3. Weight: 27g
4. Power Supply: DC 5~15V
5. Maximum Power Consumption: 1.4W
6. Quiescent Power Consumption: 0.1W
7. Storage Temperature: -40~+85℃
8. Operating Temperature: -10~+55℃
9. Emitter: VCESL Laser
10. Emitting Angle: ±1.6°
11. Maximum Measuring Distance: 40m
12. Minimum Measuring Distance: 0.08m
13. Waterproof: ABS+aviation aluminum waterproof case
14. Adaptive Data Output Rate: 6~54Hz
15. Output Data: Distance, accuracy, signal strength, ambient IR level, temperature
16. Communication Interface: CAN

Application:

1. Drone Altitude Holding
2. Drone Soft-Landing
3. Drone Collision Avoidance
4. Security Systems
5. Height Difference Measurement
6. Empty Bay Detection

Package Includes:

1 x Hypersen ToF Ranging Sensor HPS-167C-L Range 40M Frequency 54HZ CAN Interface
