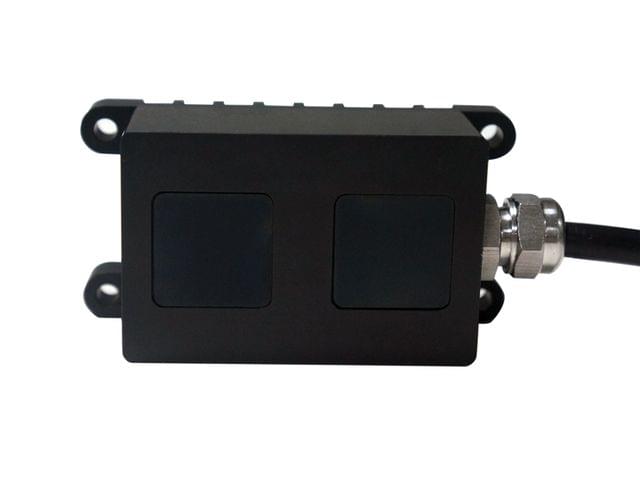

5caedd123adef22ae95744a2 HPS-3D160 Solid-State LiDAR https://cdn1.storehippo.com/s/59c9e4669bd3e7c70c5f5e6c/ms.products/5caedd123adef22ae95744a2/images/5caedd123adef22ae95744a3/5caedae451df0d4421c03df8/webp/5caedae451df0d4421c03df8.jpg

Description

HPS-3D160 is a new generation high-performance solid-state LiDAR sensor based on the principle of ToF, with optimized lighting system and low distortion infrared optical lens, measure distance up to 12m on 90% reflective rate white target. Flexible customize ROI setting function, Simple-HDR, Auto-HDR, and Super-HDR mode, make HPS-3D160 widely used in all reflectivity scenes.

HPS-3D160 integrates a high-power 850nm infrared VCSEL emitter and a high-sensitivity photosensitive device, embedded high-performance processor and advanced data process, filter and compensation algorithm, enables very stable and simultaneous measure data output. Full solid structure, industrial IP67 waterproof design and strong aerospace aluminum housing allows the HPS-3D160 to be used in a variety of complex environments

Features

  • Full field of view frame up to 35 fps

  • Field of View: 76° x 32°,Resolution: 160 x 60

  • Support 16 group of users customize region of interest setting, each group support 8 regions of interest

  • Various communication ports, support USB, RS-232, RS-485, CAN and GPIO Optocoupler isolation port.

  • Support GPIO input measurement simultaneously.

  • Measures range up to 12m

  • Range accuracy: points cloud in centimeter

  • Excellent ambient light suppression ability

  • Embedded anti-interference algorithm, support multi-machine work

  • Total solid structure, industrial IP67 anti-water design

  • Support Simple-HDR mode, Auto-HDR mode and Super-HDR mode, with fine scene adaptability.

Applications

  • Robotics & AGV automatic navigated robot(obstacle detection,SLAM application)

  • Drone collision avoidance,altitude hold

  • Industrial safety area protection and proximity protection

  • Safety surveillance

  • 3D movement recognition

  • 3D modeling

Technical Details

Dimensions78mm x 40mm x 30mm
WeightG.W 140g    N.W 110g
BatteryExclude
Power supply9 ~ 12 V
Maximum power consumption6 W
Quiescent power consumption0.7 W
Storage temperature-40 ~ 85℃
Operating temperature-10 ~ 55℃
Infrared VCSEL emitter850 nm
Emitting angle76(horizontal)x 32(vertical)°
Maximum measuring distance12 *2 m
Minimum measuring distance0.25 m
Maximum output frame rateFull field of view 35 fps
Output dataDepth data, average distance, signal strength, weak signal pixels quantity, saturated pixels quantity, maximum distance, minimum distance
Operating modeOperating mode
Power-on initialization time1500 ms
InterfaceOption:USB(default),RS232,RS485 or CAN(Q1,2019)。
Optocoupler isolation IOstandard:input x 1,output x 1
Cable length200 cm

Part List

HPS-3D160 Solid-State LiDAR1
    TT-SEEED-101990386
    in stockINR 32280
    SEEEDSTUDIO
    1 1
