HDC1000 click
HDC1000 click

Description of product

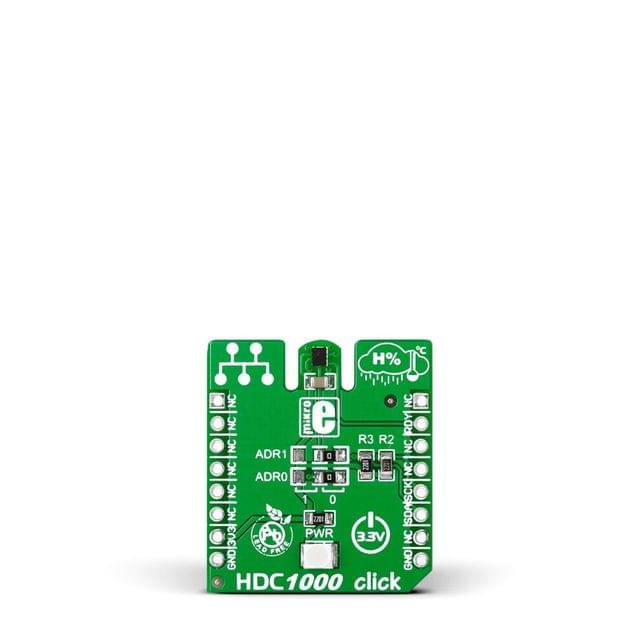

HDC1000 click is a humidity (and temperature) measurement click™ board carrying the HDC1000 sensor from TI. Its chief features are low power consumption, precision, and resistance to dust, dirt, and similar environmental contaminants. The relative humidity (0-100%RH) is measured with an accuracy of ±3%; the temperature is measured within a range from –20°C to 85°C with ±0.2°C accuracy. HDC1000 click communicates with the target board MCU through mikroBUS I2C and INT lines. It operates as a slave device on the I2C interface. A pair of onboard jumpers allow you to specify the slave byte address, with four to choose from. The board is designed to use a 3.3V power supply only.


ApplicationsHVAC systems, thermostats, weather stations
On-board modulesHDC1000 sensor
Key Features0-100%RH, ±3% accuracy. -20°C to 85°C with ±0.2°C accuracy. 14-bit resolution measurements
Key BenefitsFactory calibrated. Sensor resistant to dirt and dust
Input Voltage3.3V
Click board sizeS (28.6 x 25.4 mm)
