Grove - Multichannel Gas Sensor

Description of product

Description

How to choose a gas sensor ?

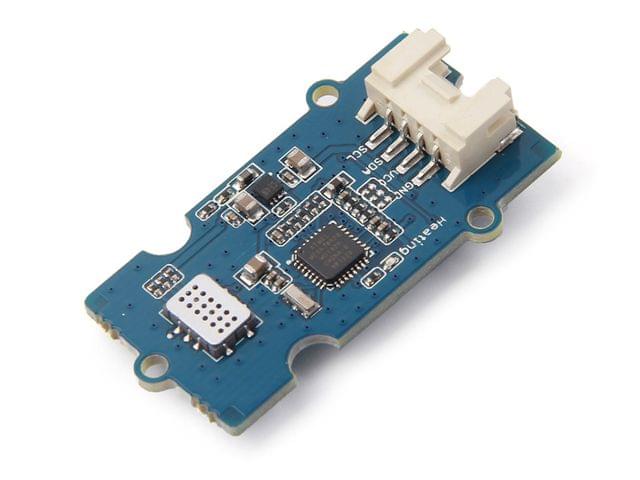

Grove – Multichannel Gas sensor is a environment detecting sensor with a built in MiCS-6814 which can detect many unhealthful gases, and three gases can be measured simultaneously due to its three channels, so it can help you to monitor the concentration which more than one gas.

This sensor is belong to Grove system, and you can plug it onto the Base shield and work with Arduino directly without any jumper wires. The interface of it is I2C, so plug it onto the I2C port of Base shield, then you can start to work it.

Features

  • Three fully independent sensing elements on one package

  • Built with ATmega168PA

  • I2C interface with programmable address

  • Heating power can be shut down for low power

  • Detectable gases:Carbon monoxide (CO) , Nitrogen dioxide (NO2) , Hydrogen (H2) , Ammonia (NH3) , Methane (CH4) , etc


    Technical Details

    Dimensions 89mm x 140mm x 6.8mm
    Weight G.W 7g
    Battery Exclude
    Voltage 3.1~ 5.25V
    Ripple(@Max Power) 80~100mV
    Max Heating Power 88mW
    Max Power 150mW
    ADC Precision 10Bits
    I2C Rate 100kHz
    VIL(@I2C) -0.5~0.99V
    VIH(@I2C) 2.31~5.2V

    Part List

    Grove – Multichannel Gas Sensor 1
    26AWG Grove Cable 1

    Documents

  • Arduino Library & Grove/Xadow firmware
