Description
Most of automated robotic projects start from a line-following robot, Grove - Line finder v1.1 is designed to achieve this task easily and quickly. Those eye-like sensors on the board are actually IR emitting LED and sensitive phototransistor. When the phototransistor detects the reflected infrared light from the IR emitting LED, it will output a digital signal, which changes from HIGH to LOW.
Features
Easy to use
Integrated indicator LED
Digital output
Adjustable detecting range.
Specifications
Power supply: 5V DC
Digital output mode: TTL (High when black is detected, Low when white is detected)
Connector: 4 pin Buckled Grove interface
Dimension: 20mm*20mm
Comparator: LMV358
Photo reflective diode: RS-06WD
Technical Details
| Dimensions | 24.2mm x 20mm x 10.8mm |
| Weight | G.W 10g N.W 8.3g |
| Battery | Exclude |
| Power supply | 5V DC |
| Digital output mode | TTL (High when black is detected, Low when white is detected) |
| Connector | 4 pin Buckled Grove interface |
| Comparator | MV358 |
| Photo reflective diode | RS-06WD |
Part List
| Grove - Line Finder v1.1 | 1 |
- Home
- Grove - Line Finder v1.1

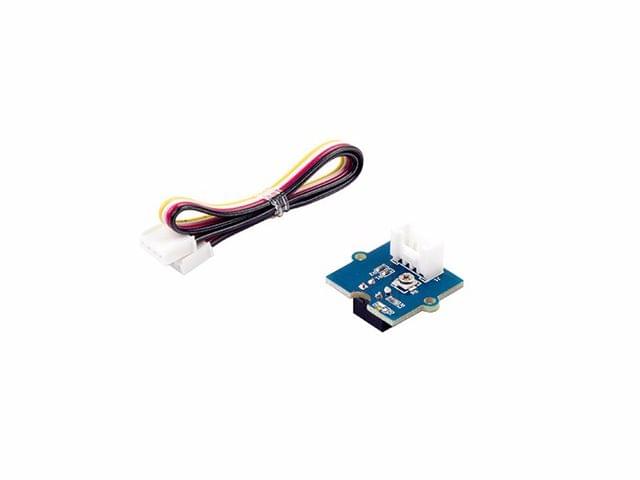

Grove - Line Finder v1.1
SIZE GUIDE
- Shipping in 10-12 Working days
- http://cdn.storehippo.com/s/59c9e4669bd3e7c70c5f5e6c/ms.products/5b1511023bbf8ea89dff1dc5/images/5b1511023bbf8ea89dff1dc6/5b15108de602e4a917f0daf2/5b15108de602e4a917f0daf2.jpg
Description of product
Description
Most of automated robotic projects start from a line-following robot, Grove - Line finder v1.1 is designed to achieve this task easily and quickly. Those eye-like sensors on the board are actually IR emitting LED and sensitive phototransistor. When the phototransistor detects the reflected infrared light from the IR emitting LED, it will output a digital signal, which changes from HIGH to LOW.
Features
Easy to use
Integrated indicator LED
Digital output
Adjustable detecting range.
Specifications
Power supply: 5V DC
Digital output mode: TTL (High when black is detected, Low when white is detected)
Connector: 4 pin Buckled Grove interface
Dimension: 20mm*20mm
Comparator: LMV358
Photo reflective diode: RS-06WD
Technical Details
| Dimensions | 24.2mm x 20mm x 10.8mm |
| Weight | G.W 10g N.W 8.3g |
| Battery | Exclude |
| Power supply | 5V DC |
| Digital output mode | TTL (High when black is detected, Low when white is detected) |
| Connector | 4 pin Buckled Grove interface |
| Comparator | MV358 |
| Photo reflective diode | RS-06WD |
Part List
| Grove - Line Finder v1.1 | 1 |
