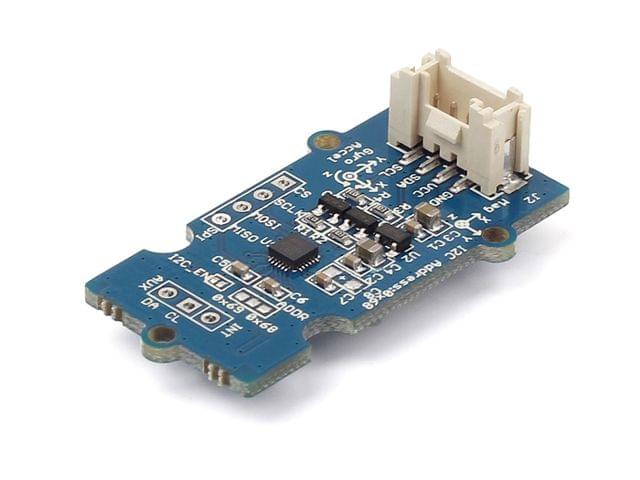

5b1635034eac50df23c422cc Grove - IMU 9DOF v2.0 https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/ms.products/5b1635034eac50df23c422cc/images/5b1635034eac50df23c422cd/5b163414538c86df22ffa305/5b163414538c86df22ffa305.jpg

Description

Grove - IMU 9DOF v2.0 is a high performance 9-axis motion tracking module,which is base on MPU-9250.This module features three 16-bit ADC for digitizing the gyroscope outputs and three 16-bit ADCs for digitizing the accelerometer outputs and three 16-bit ADCs for digitizing the magnetometer outputs. low power, low cost, and high performance make it suitable for consumer electronics equipment including smartphones, tablets and wearable sensors.

Features

  • Ultra-low power, low voltage

  • Wide Detecting Range

  • Internal Digital Motion Processing™ (DMP™) engine supports advanced MotionProcessing and low power functions such as gesture recognition using programmable interrupts

  • Self-test function

  • Digital-output 3-Axis angular rate sensors (gyroscopes) with a user-programmable full-scale range of ±250, ±500, ±1000, and ±2000°/sec

  • Digital-output 3-Axis accelerometer with a programmable full scale range of ±2g, ±4g, ±8g and ±16g

  • Digital-output 3-Axis accelerometer with a full scale measurement range is ±4800μT



Technical Details

Dimensions 100mm x 80mm x 11mm
Weight G.W 7g
Battery Exclude
Working Voltage 5V
Control Mode IIC
Operating Temperature -40 ~ +85°C
Dimensions 40mm x 20mm

Part List

IMU 9DOF Sensor v2.0 1
26AWG Grove Cable 1
TT-SS-101020080
in stock INR
SEEEDSTUDIO
1 1
Grove - IMU 9DOF v2.0

Grove - IMU 9DOF v2.0

Sku: TT-SS-101020080
Be the first to review this product
