Grove - 3-Axis Digital Gyro

Description of product

Description

Grove - 3-axis Gyro module based on ITG 3200. It is the world’s first single-chip, digital-output, 3-axis MEMS motion processing gyro optimized for gaming, 3D mice, and motion-based remote control applications for Internet connected Digital TVs and Set Top Boxes.

Features

  • Grove compatible interface

  • Digital-output X-, Y-, and Z-Axis

  • Fast Mode I²C (400kHz) serial interface

  • ±2000°/s full scale range and 14.375 LSBs per °/s sensitivity

  • Low 6.5mA operating current for long battery life

  • On-chip temperature sensor

  • Integrated amplifiers and low-pass filters

  • RoHS and Green compliant



Technical Details

Dimensions20mm x 20mm x 15mm
WeightG.W 6g
BatteryExclude

Part List

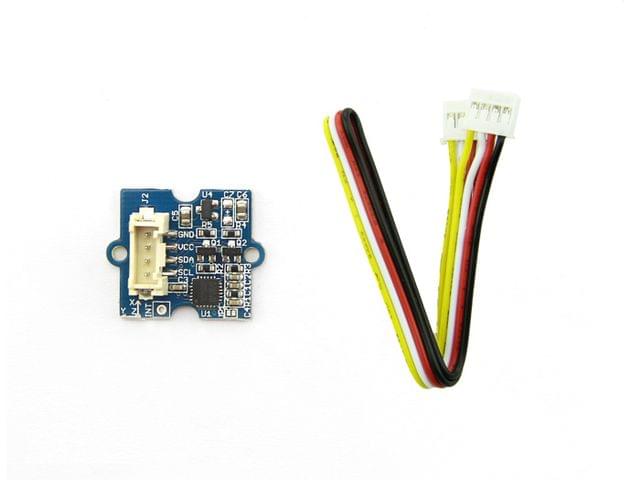

Grove - 3-Axis Digital Gyro1
Grove Cable1

Documents
