Description of product

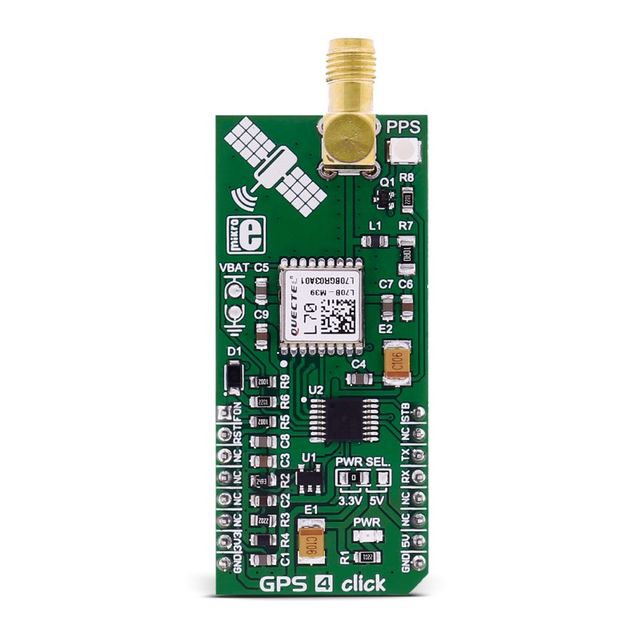

GPS 4 click carries the L70 compact GPS module from Quectel. The click is designed to run on either 3.3V or 5V power supply. It communicates with the target microcontroller over UART interface, with additional functionality provided by the following pins on the mikroBUS™ line: PWM, AN, RST.

L70 module features

L70, an SMD type module, brings the high performance of MTK positioning engine to the industrial applications with a compact profile, ultra low power consumption and fast positioning capability.

Combining advanced AGPS called EASY™ (Embedded Assist System) and proven AlwaysLocate™ technology, L70 achieves the highest performance and fully meets the industrial standard. EASY™ technology ensures L70 can calculate and predict orbits automatically using the ephemeris data (up to 3 days) stored in internal RAM memory, so L70 can fix position quickly even at indoor signal levels with low power consumption.

With AlwaysLocate™ technology, L70 can adaptively adjust the on/off time to achieve a balance between positioning accuracy and power consumption according to the environmental and motion conditions.

How it works

A constellation of satellites sends a continuous signal towards Earth. Onboard every satellite is an atomic clock, and all of them are synchronized, thanks to a reference time scale defined by the whole system. So, that the signals coming from the different satellites of the same constellation share the same reference time scale.

The user wanting to use GPS to determine its position must have an antenna that receives the signals coming from the satellites, and a receiver that translates these signals. The antenna position will be deduced from the measurements of the time delay between the emission time (satellite) and the reception time (receiver) for at least 4 signals coming from different satellites.

Specifications

Type GPS
Applications Navigation devices based on GPS
On-board modules Quectel's L70
Key Features Ultra low power consumption in tracking mode, 12mA, High sensitivity, -165dBm@Tracking, -148dBm@Acquisition
Key Benefits AlwaysLocate™, an intelligent controller of periodic mode
Interface UART
Input Voltage 3.3V or 5V
Click board size L (57.15 x 25.4 mm)

Pinout diagram

This table shows how the pinout on GPS 4 click corresponds to the pinout on the mikroBUS™ socket (the latter shown in the two middle columns).

Notes Pin Mikrobus logo.png                   Pin Notes
Module Force ON       FORCE ON        1 AN PWM 16 STANDBY     Module Standby
Module Reset RST 2 RST INT 15 NC
NC 3 CS TX 14 TX Module Transmit line
NC 4 SCK RX 13 RX Module Receive line
NC 5 MISO SCL 12 NC
NC 6 MOSI SDA 11 NC
Power supply +3.3V 7 3.3V 5V 10 +5V Power supply
Ground GND 8 GND GND 9 GND Ground

Jumpers and settings

Designator   Name Default Position Default Option Description
JP1 VCC-BCKP   ON VCC BCKP Battery connection; unsolder when battery is connected
JP2 VCCIO 3V3 Level selector

Buttons and LEDs

Designator     Name     Type     Description
LD1 PWR LED Power Indication LED
LD2 PPS LED GPS tracking indicator

Programming

Code examples for GPS 4 click, written for MikroElektronika hardware and compilers are available on Libstock.

Code snippet

The following code snippet shows the function that feeds the data into a buffer until the sentence is ready for parsing, and sets the appropriate flag when such event occurs.

01 void gnss_put( char input )
02 {
03    static bool sentence_flag;
04
05    if( ( input != 'r' && input != 'n' ) && buffer_position < BUFFER_MAX )
06    {
07        buffer[ buffer_position++ ] = input;
08    }
09    else if( input == 'r' )
10    {
11        sentence_flag = true;
12    }
13    else if( input == 'n' && sentence_flag )
14    {
15        buffer[ buffer_position ] = '';
16        buffer_position = 0;
17        strcpypvt( process_buffer, buffer );
18        sentence_flag = false;
19        process_flag = true;
20    }
21    else
22    {
23        buffer_position = 0;
24    }
25 }
