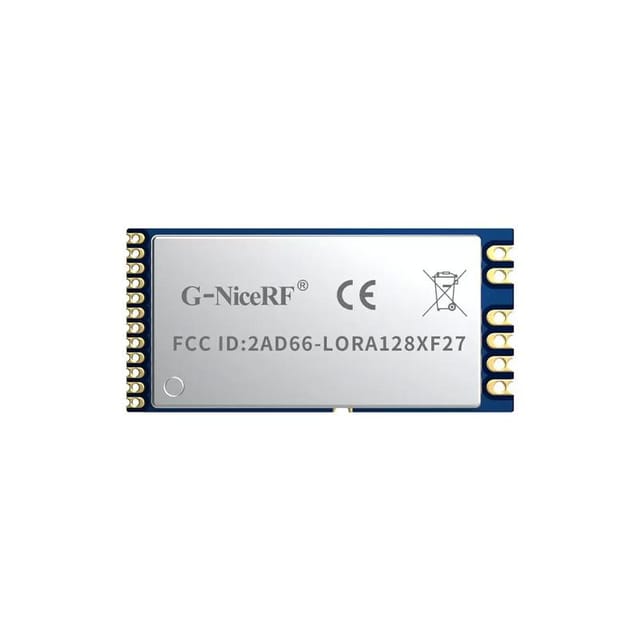

The G-NiceRF LoRa1280F27 is a high-performance 2.4GHz LoRa module designed with Semtech’s SX1280 RF chip, delivering impressive long-range wireless communication capabilities. This module features an output power of up to 500mW (+27 dBm) and is equipped with a high-precision 0.5ppm TCXO crystal oscillator to ensure stable operation in harsh environments. G-NiceRF LoRa1280F27 supports LoRa modulation, providing excellent sensitivity and environmental resistance, making it ideal for applications that require long-distance communication, even in noisy or obstructed environments.

Features:

1. High output power: 500mW (+27 dBm)
2. Sensitivity: -132 dBm @ LoRa
3. Operating frequency: 2400-2500 MHz
4. Data transfer rate: 0.476-202 kbps
5. LoRa modulation for long-range communication
6. Built-in Low Noise Amplifier (LNA)
7. High-precision 0.5ppm TCXO crystal oscillator
8. Operating voltage range: 2.0V to 5.5V
9. Operating temperature range: -40°C to +85°C
10. SPI interface for easy integration
11. CE-RED and FCC certified
12. Ideal for wireless remote, smart home, and health monitoring applications

Package Includes:

1 x G-NiceRF LoRa1280F27 : SX1280 500mW FCC ID & CE-RED Certified 2.4GHz LoRa Module With SPI Interface Power
