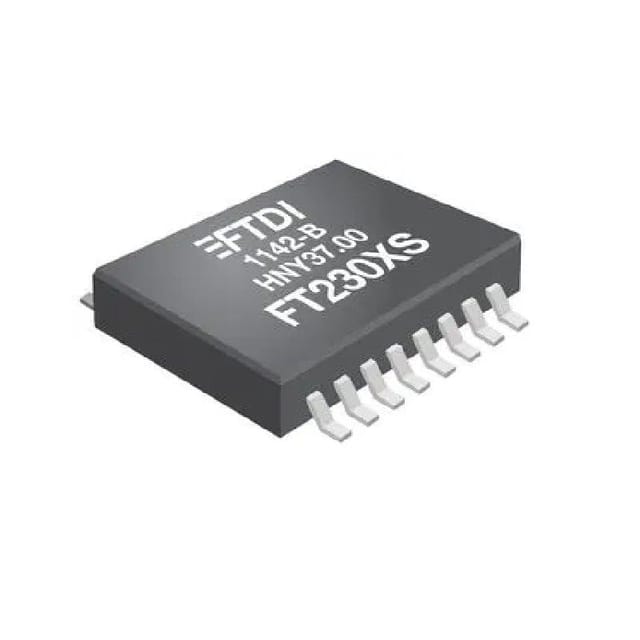

This is FTDI-FT230XS- USB to Basic UART-IC . The FT230X provides a convenient USB-UART interface for the SecureIoT1702 Development Board which can be used to create an interface between the CEC1702 and a host device (e.g. a PC serial terminal application).

Note:

1. The product may vary in shape, color, and markings as compared to the image shown depending upon availability.
2. Refer to datasheet in the ATTACHMENTS section for more info. regd. the product.

Features:

1. Single chip USB to asynchronous serial data transfer interface.
2. Entire USB protocol handled on the chip. No USB specific firmware programming required.
3. Fully integrated 2048 byte multi-time programmable (MTP) memory, storing device
   descriptors and CBUS I/O configuration.

4. Fully integrated clock generation with no external crystal required plus optional clock output selection enabling a glue-less interface to external MCU or FPGA.
5. Data transfer rates from 300 baud to 3 Mbaud (RS422, RS485, and RS232) at TTL levels.
   512 byte receive buffer and 512 byte transmit buffer utilising buffer smoothing technology to allow for high data throughput.

6. FTDI’s royalty-free Virtual Com Port (VCP) and Direct (D2XX) drivers eliminate the requirement
   for USB driver development in most cases.

7. Configurable CBUS I/O pins.
8. Transmit and receive LED drive signals.
9. UART interface support for 7 or 8 data bits, 1 or 2 stop bits and odd / even / mark / space / no parity
10. Synchronous and asynchronous bit bang interface options with RD# and WR# strobes.

Package Includes:

1 x FT230XS- USB to Basic UART-IC
