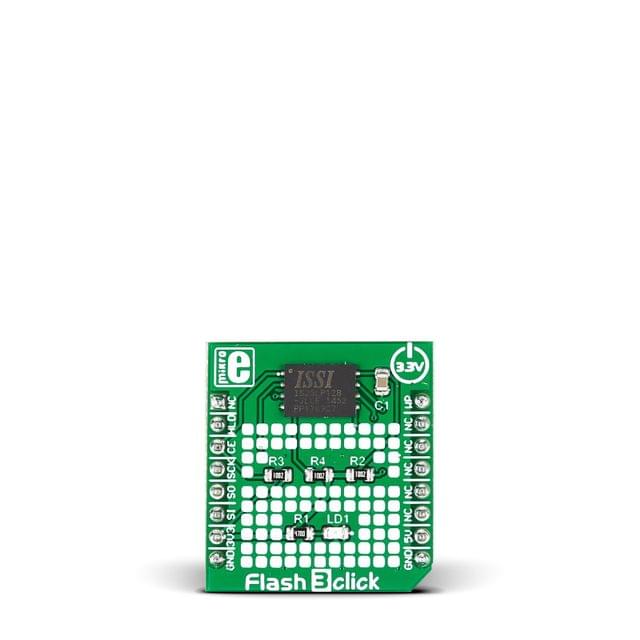

Flash 3 click
Flash 3 click

Description of product

The high-performance Flash chip operates at 50MHz at Normal and 133MHz at Fast Read speeds.

It is specified to standard 100,000 erase/program cycles with more than 20 years of data retention. The data can be erased in sectors or blocks and programmed with 1 to 256 bytes per page.

Each chip has a 128-bit unique ID for each device.

Flash 3 communicates with the target board through the mikroBUS™ SPI interface with additional functionality provided by HOLD, CE and WP pins. It is designed to use a 3.3V power supply only.
