Rohm Semiconductor EM6K31GT2RTR-ND,EM6K31GT2RCT-ND,EM6K31GT2RDKR-ND
Sku: TT-DKEY-EM6K31GT2RTR-ND,EM6K31GT2RCT-ND,EM6K31GT2RDKR-ND
₹50.4
Features
- Shipping in 10-12 Working Days
Description of product
MOSFET 2N-CH 60V 0.25A EMT6
Product Attributes:
| Series | - |
| Product Status | Active |
| Technology | MOSFET (Metal Oxide) |
| Configuration | 2 N-Channel (Dual) |
| FET Feature | Logic Level Gate, 2.5V Drive |
| Drain to Source Voltage (Vdss) | 60V |
| Current - Continuous Drain (Id) @ 25°C | 250mA |
| Rds On (Max) @ Id, Vgs | 2.4Ohm @ 250mA, 10V |
| Vgs(th) (Max) @ Id | 2.3V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | - |
| Input Capacitance (Ciss) (Max) @ Vds | 15pF @ 25V |
| Power - Max | 120mW |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |

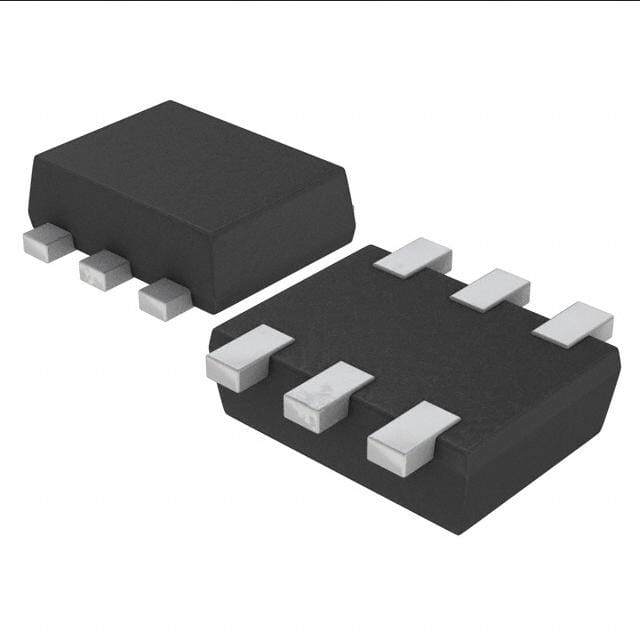

| Package / Case | SOT-563, SOT-666 |
| Supplier Device Package | EMT6 |
| Grade | - |
| Qualification | - |
