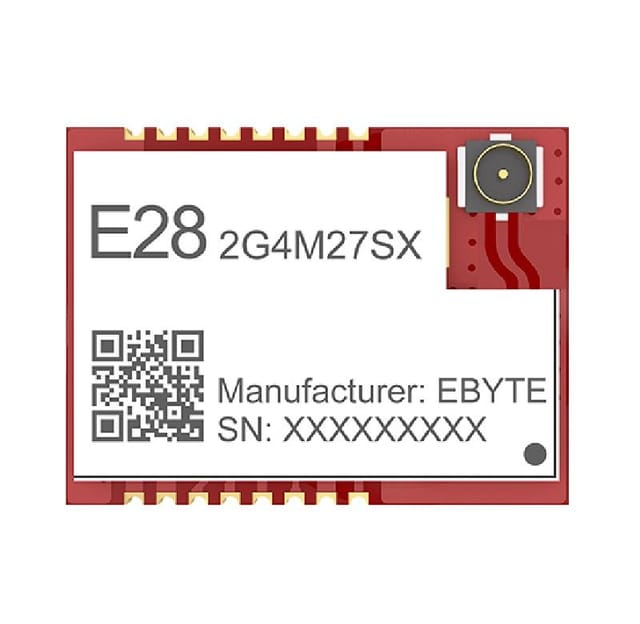

E28-2G4M27SX is a 2.4GHz RF transceiver module designed and produced by Ebyte Company, with a transmit power of 500mW, SPI interface, and extremely low current consumption in low-power mode;the module is a small-volume SMD type (pin spacing 1.27mm) , using 52MHz industrial-grade high-precision low-temperature drift crystal oscillator to ensure its industrial characteristics and its stable performance.

Applications:

1. Smart home and industrial sensors, etc
2. Security system, positioning system
3. Wireless remote control, drone
4. Wireless game remote
5. Healthcare products
6. Wireless voice, wireless headset
7. Automotive industry applications

Features:

1. Under ideal conditions, the communication distance can reach 8km
2.  Built-in PA+LNA, maximum transmit power 500mW
3.  Compatible with BLE protocol
4.  Support license-free ISM 2.4GHz frequency band
5.  Support data transmission rate of 0.595k～2Mbps
6.  Support multiple modulation modes（GFSK Mode，FLRC Mode，LoRa Mode）
7. Support 2.5 ~ 3.6V power supply, more than 3.3V power supply can ensure the best performance
8.  Adjustable air rate, up to 1.3Mbps under FLRC modulation
9.  Excellent anti-blocking properties

Package Includes:

1 x EBYTE E28-2G4M27SX 2.4GHz SX1281 RF transceiver module,Extremely low current consumption in low-power mode
