Diodes Incorporated DMN2400UV-7DITR-ND,DMN2400UV-7DICT-ND,DMN2400UV-7DIDKR-ND
Sku: TT-DKEY-DMN2400UV-7DITR-ND,DMN2400UV-7DICT-ND,DMN2400UV-7DIDKR-ND
₹47.52
Features
- Shipping in 10-12 Working Days
Description of product

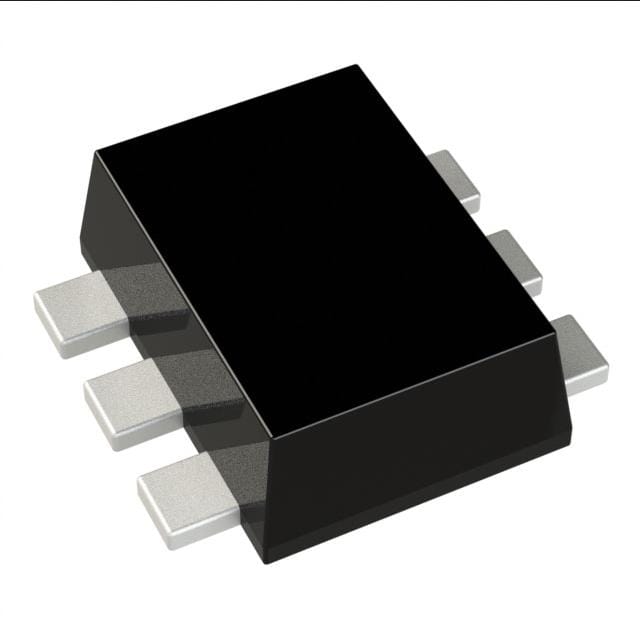

MOSFET 2N-CH 20V 1.33A SOT563
Product Attributes:
| Series | - |
| Product Status | Active |
| Technology | MOSFET (Metal Oxide) |
| Configuration | 2 N-Channel (Dual) |
| FET Feature | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 20V |
| Current - Continuous Drain (Id) @ 25°C | 1.33A |
| Rds On (Max) @ Id, Vgs | 480mOhm @ 200mA, 5V |
| Vgs(th) (Max) @ Id | 900mV @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 0.5nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 36pF @ 16V |
| Power - Max | 530mW |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SOT-563, SOT-666 |
| Supplier Device Package | SOT-563 |
| Grade | - |
| Qualification | - |
