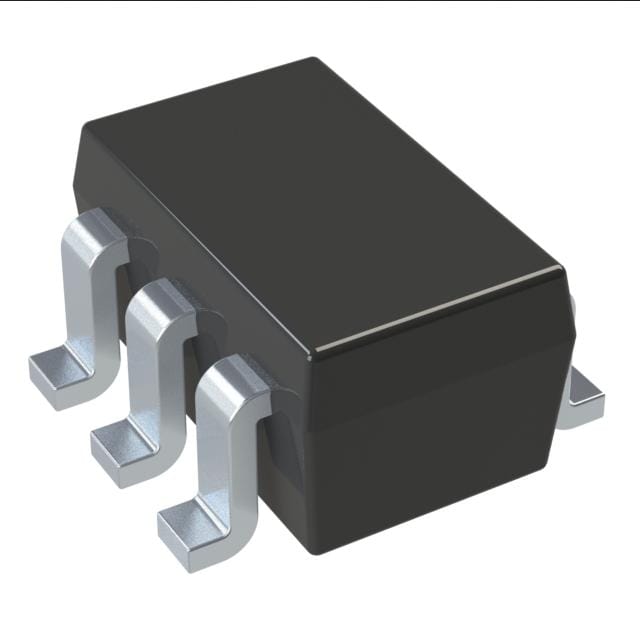

Diodes Incorporated DMC2004DWKDITR-ND,DMC2004DWKDICT-ND,DMC2004DWKDIDKR-ND
Sku: TT-DKEY-DMC2004DWKDITR-ND,DMC2004DWKDICT-ND,DMC2004DWKDIDKR-ND
₹50.4
Features
- Shipping in 10-12 Working Days
Description of product
MOSFET N/P-CH 20V SOT363
Product Attributes:
| Series | - |
| Product Status | Active |
| Technology | MOSFET (Metal Oxide) |
| Configuration | N and P-Channel |
| FET Feature | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 20V |
| Current - Continuous Drain (Id) @ 25°C | 540mA, 430mA |
| Rds On (Max) @ Id, Vgs | 550mOhm @ 540mA, 4.5V |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | - |
| Input Capacitance (Ciss) (Max) @ Vds | 150pF @ 16V |
| Power - Max | 250mW |
| Operating Temperature | -65°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Supplier Device Package | SOT-363 |
| Grade | - |
| Qualification | - |
