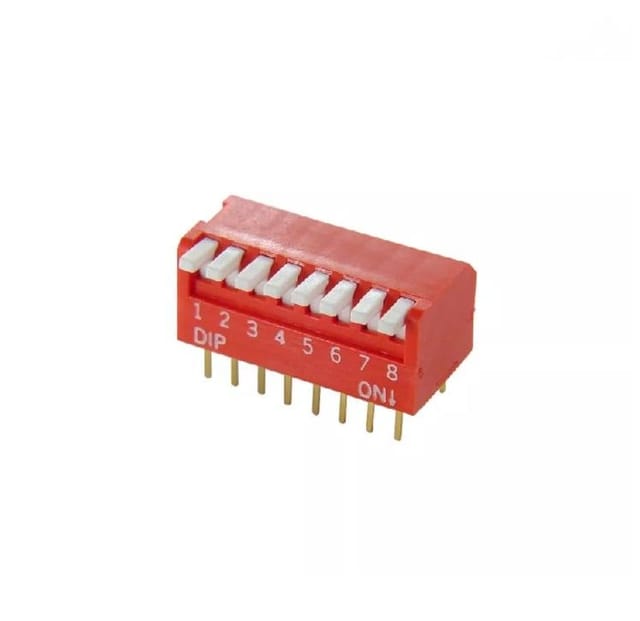

672affc679a4370024a1c04e DIP Switch-HC-34 https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/672affc779a4370024a1c062/untitled-29.jpg

The DIP Switch HC-34, with MPN HC-34, is designed for reliability with a rating of 25mA 24V DC. It features a piano-type, long key design with a PIN pitch of 2.54mm. The operation force is 400gf max, ensuring effective switching. With AC 500V dielectric strength, insulation resistance of 100 MΩ min at 500V DC, and contact resistance of 50MΩ max, it provides Tenet Technetronicsst electrical connections. Operating in a temperature range of -25oC to +70oC, it offers durability with a mechanical and electrical life of 2,000 operations each.

Package Includes:

1 x DIP Switch-HC-34

TT-RB-1897030
in stockINR 29
1 1

DIP Switch-HC-34

Sku: TT-RB-1897030
Be the first to review this product
₹29
Add to Cart Buy Now
Sold By: tenettech
Features
  • Shipping in 10-12 Working Days

Description of product

The DIP Switch HC-34, with MPN HC-34, is designed for reliability with a rating of 25mA 24V DC. It features a piano-type, long key design with a PIN pitch of 2.54mm. The operation force is 400gf max, ensuring effective switching. With AC 500V dielectric strength, insulation resistance of 100 MΩ min at 500V DC, and contact resistance of 50MΩ max, it provides Tenet Technetronicsst electrical connections. Operating in a temperature range of -25oC to +70oC, it offers durability with a mechanical and electrical life of 2,000 operations each.

Package Includes:

1 x DIP Switch-HC-34
