This module integrates high-precision gyroscopes, an accelerometer, the microprocessor of high-performance and advanced dynamics solves and Kalman filter algorithms that aim to quickly solve the current real-time movement of the module attitude. The use of advanced digital filtering technology can effectively reduce measurement noise and improve accuracy.

The module comes with a built-in gesture solver that can get an accurate attitude in a dynamic environment combined with a dynamic Kalman filter algorithm. Its static measurement accuracy is up to 0.05 degrees (dynamic 0.1) with high stability, which could bring better performance even than some professional Inclinometers!

Connection Diagram:

Useful Link:

https://wiki.dfrobot.com/Serial_6_Axis_Accelerometer_SKU_SEN0386

Features:

1. There is a voltage stabilizer circuit inside the module
2. Its pin level is compatible with 3.3/5V embedded systems
3. It employs a TTL interface for connection
4.  the module supports adjustable 2400bps~921600bps baud rate and 0.1Hz~200Hz data output

Package Includes:

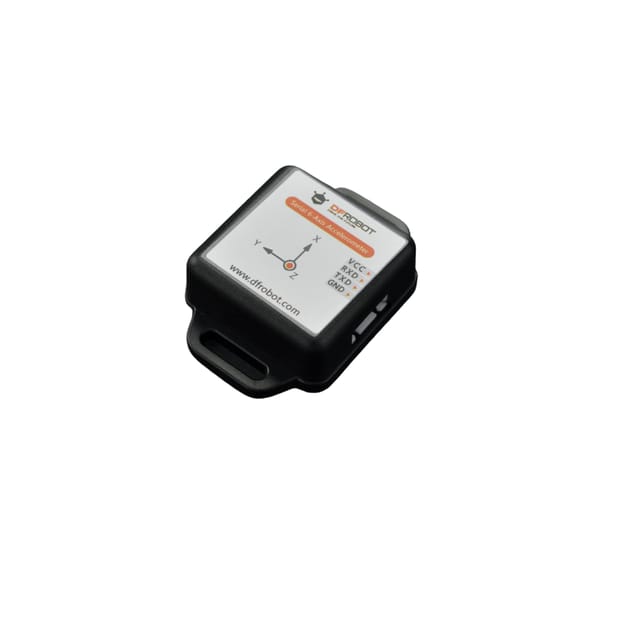

1 x DFRobot Serial 6-Axis Accelerometer for Arduino
