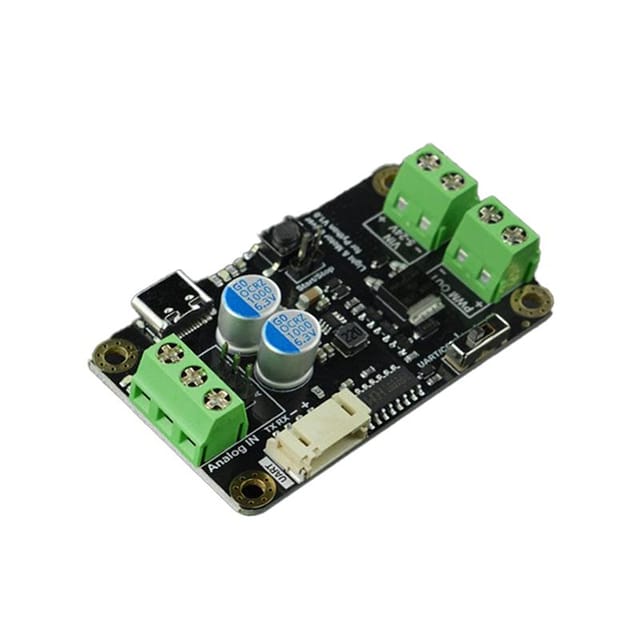

DFRobot Light & Motor Driver for Python (V1.0)
- Shipping in 10-12 Working Days
Description of product
This is a PWM driver board with four adjustment methods, namely, Python code direct control, PC host computer control, UART communication programming control, and potentiometer manual control.
It is used in application scenarios such as DC motor speed control and light adjustment.
This product supports 5V~24V wide voltage input, and has a load capacity of 10A, which can drive a DC motor of about 10W or a LED strip light of about 5 meters.
It is suitable for water pump water volume control, cooling fan speed control, light brightness adjustment, power tool transformation, motor/LED strip product testing, motor speed automation control, lighting effect automation control and other scenes.
Features:
- Simple and easy to use:Python code programming, no motherboard or adapter required.
- Plug and play:Windows software control, no programming required,
- UART communication control:Convenient for long-term use of embedded equipment.
- External potentiometer control:Manual control, no programming required.
- Standard MODBUS protocol:The protocol is public, and you can flexibly customize your own control method.
- 5V~24V wide voltage support:Suitable for various motors and light strips.
- Driven by high current MOS tube, load capacity of 10A
Applications:
- Connect the USB interface, you can directly use Python code to automatically control the motor speed and lighting effect. No additional motherboard or adapter is required.
- Can be very conveniently used on Windows computers, Apple computers, Raspberry Pi, industrial computers or LattePanda.
- When remaking a PC cooling fan, cooling water pump, etc, you can manually control the device on PC, or make it be automatically adjusted by reading the CPU temperature.
- Because the host computer can accurately adjust the frequency and duty ratio, this driver can be used to test dc motor or light strip products, or to optimize small equipment.
- Make a small fan whose wind speed can be automatically adjusted or controlled on the computer. Just plug in the USB to use.
- MODBUS communication protocol.
Package include:
1 x Light & Motor Driver for Python
1 x Gravity 4P Cable (Connect to UART)
