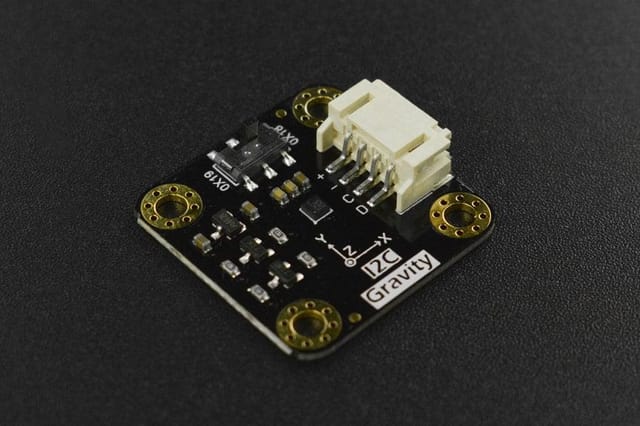

The DFRobot Gravity I2C LIS2DW12 Triple Axis Accelerometer Sensor is an ultra-low-power high-performance three-axis linear accelerometer. It has user-selectable full scales of ±2g/±4g/±8g/±16g and is capable of measuring accelerations with output data rates from 1.6 Hz to 1600 Hz.
The sensor comes with two independent programmable interrupts and a dedicated internal engine that can achieve various motion and acceleration detection including free-fall, portrait/landscape detection, 6D/4D orientation detection, configurable single/double-tap recognition, stationary/motion detection, wake-up for smart power saving, etc. And for your convenience, we provide you with sample programs for the above functions.
Features:
- User-selectable scale: ±2g/±4g/±8g/±16g
- 16-bit data output
- Easy-to-use Gravity interface, no need to solder
- Change I2C address by the toggle switch
Specifications:
- Operating Voltage: 3.3V~5V
- Operating Current: 8~10uA(low-power & low-noise mode)/0.12mA(high performance mode)
- Interface: Gravity-I2C
- I2C Address: 0x19 (default) / 0x18 (optional)
- User-selectable Scale: ±2g/±4g/±8g/±16g
- Operating Temperature: -40℃~+85℃
- Frequency: 1.6Hz~1600Hz
- Ultra-low Noise: 1.3mgRMS(low power mode)
- 16-bit Data Output
- 32-Level FIFO(First-in first-out buffer zone)
- Sleep to Wake-up Function
- 10000g High Shock Survivability
- ECOPACK, RoHS and “Green” Compliant
- Module Size: 27*27mm/1.06*1.06
- Mounting Hole Size: inner 3.1mm/outer 6mm
Useful Links:
Product wiki
Package Includes:
1 x Gravity: I2C LIS2DW12 Triple Axis Accelerometer Sensor
1 x Gravity-4P I2C/UART Sensor Connector
- Home
- MARKETPLACE
- DFRobot Gravity I2C LIS2DW12 Triple Axis Accelerometer Sensor (?2g/?4g/?8g/?16g)
DFRobot Gravity I2C LIS2DW12 Triple Axis Accelerometer Sensor (?2g/?4g/?8g/?16g)
SIZE GUIDE
- Shipping in 10-12 Working Days
Description of product
The DFRobot Gravity I2C LIS2DW12 Triple Axis Accelerometer Sensor is an ultra-low-power high-performance three-axis linear accelerometer. It has user-selectable full scales of ±2g/±4g/±8g/±16g and is capable of measuring accelerations with output data rates from 1.6 Hz to 1600 Hz.
The sensor comes with two independent programmable interrupts and a dedicated internal engine that can achieve various motion and acceleration detection including free-fall, portrait/landscape detection, 6D/4D orientation detection, configurable single/double-tap recognition, stationary/motion detection, wake-up for smart power saving, etc. And for your convenience, we provide you with sample programs for the above functions.
Features:
- User-selectable scale: ±2g/±4g/±8g/±16g
- 16-bit data output
- Easy-to-use Gravity interface, no need to solder
- Change I2C address by the toggle switch
Specifications:
- Operating Voltage: 3.3V~5V
- Operating Current: 8~10uA(low-power & low-noise mode)/0.12mA(high performance mode)
- Interface: Gravity-I2C
- I2C Address: 0x19 (default) / 0x18 (optional)
- User-selectable Scale: ±2g/±4g/±8g/±16g
- Operating Temperature: -40℃~+85℃
- Frequency: 1.6Hz~1600Hz
- Ultra-low Noise: 1.3mgRMS(low power mode)
- 16-bit Data Output
- 32-Level FIFO(First-in first-out buffer zone)
- Sleep to Wake-up Function
- 10000g High Shock Survivability
- ECOPACK, RoHS and “Green” Compliant
- Module Size: 27*27mm/1.06*1.06
- Mounting Hole Size: inner 3.1mm/outer 6mm
Useful Links:
Product wiki
Package Includes:
1 x Gravity: I2C LIS2DW12 Triple Axis Accelerometer Sensor
1 x Gravity-4P I2C/UART Sensor Connector
