DE0-CV Board

Description of product

The optimized DE0-CV is a robust hardware design platform which uses the Altera Cyclone V FPGA device as the center control for its peripherals such as the on-board USB Blaster, video capabilities and much more. With this amazing platform, you will get the power and the performance you need for high-volume applications, including prototyping bridging, motor control drives, capture cards and handheld devices at the lowest costs. The DE0-CV is the perfect showcasing and evaluation solution which we’ve kept all the prototyping features on a small 128x99mm development board.



The DE0-CV contains all components needed to use the board in conjunction with a computer that runs the Microsoft Windows XP or later.

FPGA Device

  • Cyclone V 5CEBA4F23C7N Device
  • 49K Programmable Logic Elements
  • 3080 Kbits embedded memory
  • 4 Fractional PLLs

Configuration and Debug

  • Serial Configuration device – EPCS64 on FPGA
  • On-Board USB Blaster (Normal type B USB connector)
  • JTAG and AS mode configuration supported

Memory Device

  • 64MB SDRAM, x16 bits data bus

Communication

    • PS/2 mouse/keyboard

Connectors

  • Two 2x20 GPIO Header (voltage levels: 3.3V)

Display

  • 4-bit Resistor VGA

Micro SD Card Socket

  • Provides SPI and 4-bit SD mode for Micro SD Card access

Switches/Buttons/LEDs

  • 10 LEDs
  • 10 Slide Switches
  • 4 Debounced Push Buttons
  • 1 CPU reset Push Buttons
  • Six 7-Segments

Power

  • 5V DC input

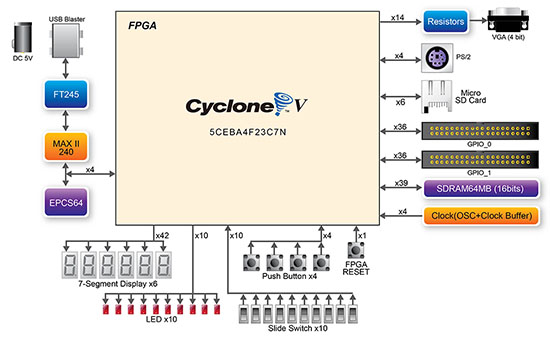

Block Diagram of the DE0-CV Board
