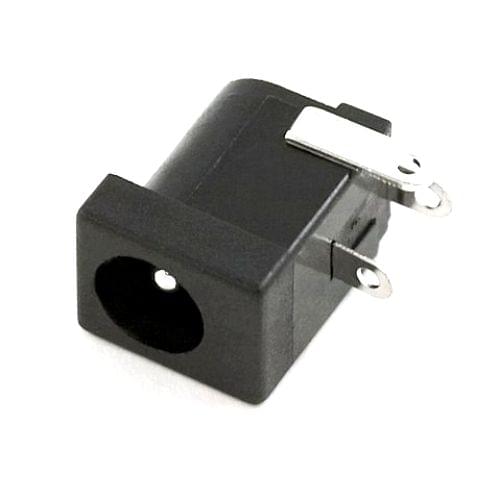

5e05df8fd98314025d0794fd DC Power Jack Female Socket (PCB Mounting) https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/ms.products/5e05df8fd98314025d0794fd/images/5e05df8fd98314025d079500/5e05df82e2693002be5089db/5e05df82e2693002be5089db.jpg

Description

DC power jack/connector. This is a common barrel-type power jack for DC power. These are compatible with our DC wall supplies and have a 5.5mm jack, with a 2.1mm center pole diameter.

This DC Power PCB Mounting Socket is the same one that is used in your Arduino Uno Board. So if you want to reduce all power wiring on your PCB then provide this power socket mounting option on your PCB.

Specification of DC Socket

  • Conditions of Use: Operating temperature range: -40-55°C
  • Rated Load: DC 30V 0.5A
  • Contact resistance: ≤0.03 Ω
  • Insulation resistance: ≥100MΩ DC 250V
  • Withstand Voltage: AC 500V (50Hz) / min
  • Insertion force :3-20N
  • Life: 5000 times
  • Size: 2.1X5.5mm

 TT-DTK-1387
in stock INR
GENERIC
1 1
DC Power Jack Female Socket (PCB Mounting)

DC Power Jack Female Socket (PCB Mounting)

Sku: TT-DTK-1387
Be the first to review this product
Product Enquiry
Contact Seller Contact Seller
Sold By: tenettech
Features
  • Shipping in 10-12 Working days
  • http://cdn.storehippo.com/s/59c9e4669bd3e7c70c5f5e6c/ms.products/5e05df8fd98314025d0794fd/images/5e05df8fd98314025d0794fe/5e05df54c4ad54511808bbb3/5e05df54c4ad54511808bbb3.jpg

Description of product

Description

DC power jack/connector. This is a common barrel-type power jack for DC power. These are compatible with our DC wall supplies and have a 5.5mm jack, with a 2.1mm center pole diameter.

This DC Power PCB Mounting Socket is the same one that is used in your Arduino Uno Board. So if you want to reduce all power wiring on your PCB then provide this power socket mounting option on your PCB.

Specification of DC Socket

  • Conditions of Use: Operating temperature range: -40-55°C
  • Rated Load: DC 30V 0.5A
  • Contact resistance: ≤0.03 Ω
  • Insulation resistance: ≥100MΩ DC 250V
  • Withstand Voltage: AC 500V (50Hz) / min
  • Insertion force :3-20N
  • Life: 5000 times
  • Size: 2.1X5.5mm
