5aaa202bb726707c88b5d1a4 DC MOTOR 3 Click https://cdn1.storehippo.com/s/59c9e4669bd3e7c70c5f5e6c/ms.products/5aaa202bb726707c88b5d1a4/images/5aaa202bb726707c88b5d1a5/5aaa1ff546c3eec5d1137c92/webp/5aaa1ff546c3eec5d1137c92.jpg

Description

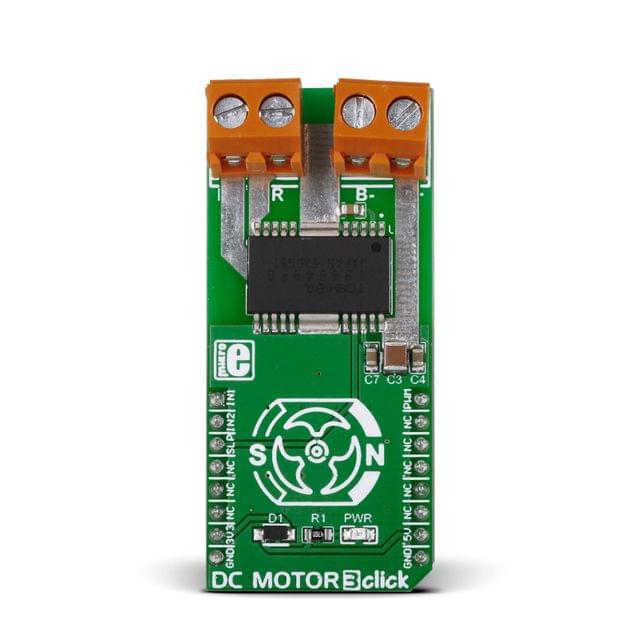

wo pairs of screw terminals are positioned on the top of the board. One is for bringing an external power supply; the other is for connecting a motor.

TB6549FG has four operating modes: clockwise, counter-clockwise, short brake and stop. The operating mode is configured through IN1 and IN2 pins. A separately controlled standby mode is also available.

For safety, the TB6549FG IC incorporates overcurrent protetciont and a thermal shutdown circuit.

The click communicates with the target MCU through the mikroBUS™ PWM pin, with additional functionality provided by IN1, IN2 and SLP pins (in place of default mikroBUS™ AN, RST and CS pins). Designed to use a 3.3 power supply only.

TT-MK-MIKROE-2047
