Description

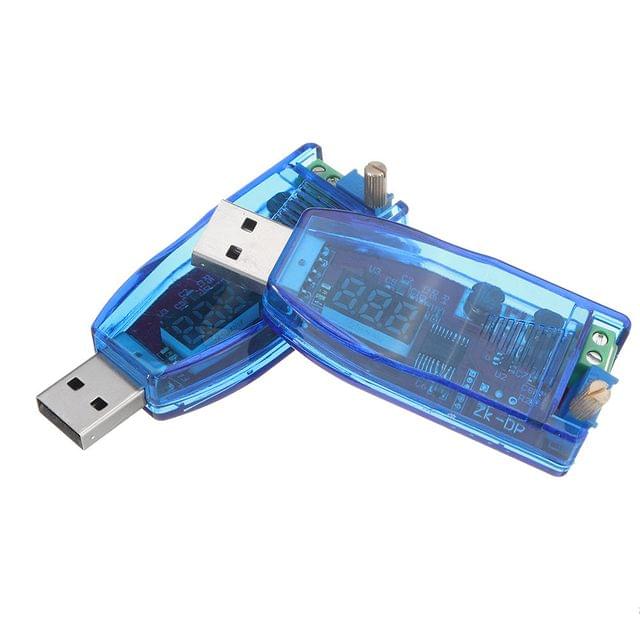

This is a DC adjustable step up step down power supply module with 3Bit LED digital tube display. Display output voltage in real time. Rotate potentiometer to adjust output voltage. Set output voltage to meet the requirement. It can be used as ordinary buck power supply module. Simple and efficient, practical.
Low power supply
Wide voltage output
Support boost and buck
Long handle potentiometer adjustment
Input Voltage:DC 5V
Output Voltage:DC 1.0V - 24.0V
Output Power: 3W(Max)
Conversion efficiency: 94%
Working current: 30mA
Working Temperature range: -20℃ to 85℃
Working Humidity range: 0%-95%RH
Dimension:70*26*22mm
Ordinary power supply
Battery charger
LED drive power
Instrument voltage display
Test meter
Power conversion
Low power supply
Support boost and buck
Input Voltage:DC 5V
Output Voltage:DC 1.0V - 24.0V
Conversion efficiency: 94%
Input DC 5V from USB male socket
Adjust output voltage by potentiometer to meet the requirement
Remove input voltage
Connect load at output terminal
Re-connect power ON and enjoy using
Please don’t short the output.
Its maximum output power is 3W, which cannot exceed.
