5aa62e33696d0cb57a5ea0c6 Counter Click https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/ms.products/5aa62e33696d0cb57a5ea0c6/images/5aa62e33696d0cb57a5ea0c7/5aa62df9bd7e6785c6f05837/5aa62df9bd7e6785c6f05837.jpg

Description

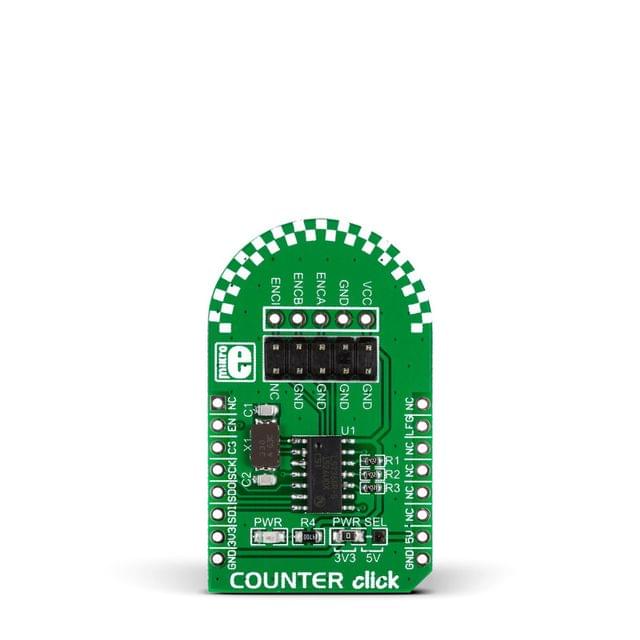

Counter click carries an LS7366R 32-bit quadrature counter. The top of the board has a pinout for interfacing with incremental encoders. The interface has ENCA and ENCB pins, along with ENCI, which is a programmable index. The A and B pulses fron an encoder are out of phase to each other, ideally by 90º. The LS7366R CMOS counter takes these signals as inputs and decodes them for determining direction and speed. On the other side, Counter click communicates with the target board microcontroller through the mikroBUS SPI interface (CSK, MISO, MOSI), plus enable (CNT EN) and interrupt (LFLAG) pins. The board can use either a 3.3V or a 5V power supply.

TT-MK-MIKROE-1917
in stock INR 3293.026
MIKROELECTRONICA
1 1

Counter Click

Sku: TT-MK-MIKROE-1917
₹3,293.03


Sold By: tenettech
Features
  • Shipping in 10-12 Working days
  • http://cdn.storehippo.com/s/59c9e4669bd3e7c70c5f5e6c/ms.products/5aa62e33696d0cb57a5ea0c6/images/5aa62e33696d0cb57a5ea0c7/5aa62df9bd7e6785c6f05837/5aa62df9bd7e6785c6f05837.jpg

Description of product

Description

Counter click carries an LS7366R 32-bit quadrature counter. The top of the board has a pinout for interfacing with incremental encoders. The interface has ENCA and ENCB pins, along with ENCI, which is a programmable index. The A and B pulses fron an encoder are out of phase to each other, ideally by 90º. The LS7366R CMOS counter takes these signals as inputs and decodes them for determining direction and speed. On the other side, Counter click communicates with the target board microcontroller through the mikroBUS SPI interface (CSK, MISO, MOSI), plus enable (CNT EN) and interrupt (LFLAG) pins. The board can use either a 3.3V or a 5V power supply.
