Description of product

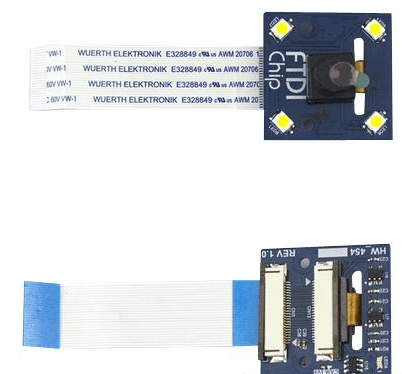

The CleO-Camera module is a camera accessory for the CleO series – the smart TFT display for Arduino. It consists of an OV5640 sensor module and Flash LEDs. The OV5640 sensor is a low voltage, highperformance, 1/4-inch 5 megapixel CMOS image sensor that provides the full functionality of a single chip 5 megapixel (2592×1944) camera using OmniBSI™ technology in a small footprint package. It is controlled through the standard Serial Camera Control Bus (SCCB) interface. The CleO-camera module is supplied with a standard 24 Pin 0.5mm pitch FFC cable.


 1.4 µm x 1.4 µm pixel with OmniBSI™ technology for high performance (high sensitivity, low crosstalk, low noise, improved quantum efficiency)

 Optical size 1/4"

 Embedded 1.5V regulator for core power

 On-board regulator for VDDA,VDDIO, only 3V3 supply needed

 Support for output format: RAW RGB, RGB565/555/444, YUV422/420, YCbCr422 and compression

 Image quality control:color saturation, hue, gamma, sharpness(edge enhancement), lens correction, defective pixel cancelling and noise cancelling

 Support for anti-shake

 Standard SCCB interface

 In built Flash light LED

 24 pin 0.5mm pitch FFC cable interface
