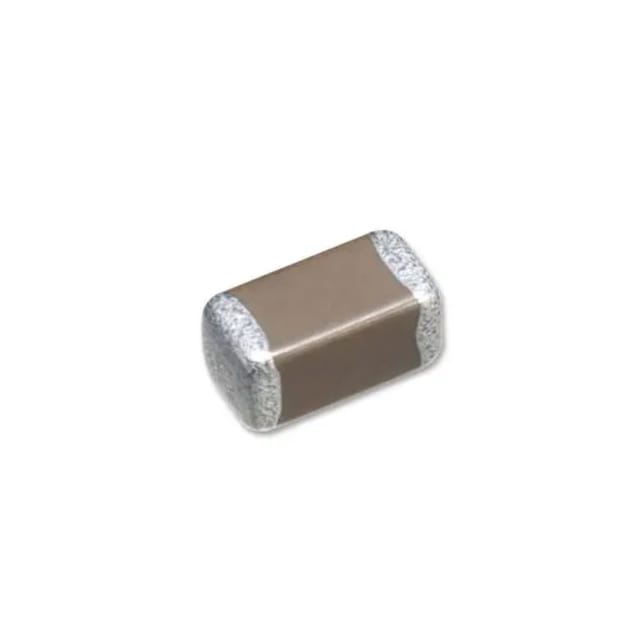

CC0603KRX7R9BB331-YAGEO-SMD Multilayer Ceramic Capacitor, 330 pF, 50 V, 0603 [1608 Metric], ? 10%, X7R, CC Series. CC0603KRX7R9BB331 is a Class 2, X7R general purpose, surface mount ceramic multilayer capacitor. The capacitor consists of a rectangular block of ceramic dielectric in which a number of interleaved metal electrodes are contained. This structure gives rise to a high capacitance per unit volume. The inner electrodes are connected to the two end terminations and finally covered with a layer of plated tin (NiSn). The terminations are lead-free. Typical applications are PCs, hard disk, game PCs, DVDs, video cameras, mobile phones and data processing.

Note: Images for reference only. For more technical information, please refer to datasheet in Attachments.

Specifications:

Capacitance:: 330pF
Voltage(DC):: 50V
Capacitor Case / Package:: 0603 [1608 Metric]
Capacitance Tolerance:: 10%
Dielectric Characteristic:: X7R
Product Range:: CC Series
Product Length:: 1.6mm
Product Width:: 0.85mm
Capacitor Terminals:: SMD
Operating Temperature Min:: -55?C
Operating Temperature Max:: 125?C
Qualification:: –
MSL:: MSL 1 – Unlimited

Package Includes:

1 x CC0603KRX7R9BB331-YAGEO-SMD Multilayer Ceramic Capacitor, 330 pF, 50 V, 0603 [1608 Metric], ? 10%, X7R, CC Series
