The Yageo CC series capacitors are Multilayer Ceramic Chip Capacitors (MLCC) with Class 2, X7R dielectric material used for general purpose applications. These capacitors consist of a rectangular block of ceramic dielectric materials that contains number of interleaved metal electrodes. This structure gives rise to a high capacitance per unit volume. The inner electrodes are connected to the two end terminations and covered with a layer of plated tin (NiSn).
Ultra small ceramic capacitors with larger capacitance value
Capacitance value ranging from 100pF to 22μF
0201, 0402, 0603, 0805, 1206, 1210, 1812 case sizes available
DC voltage rating of 6.3V to 50V
High temperature range of -55°C to 125°C
Nickel barrier end termination
Good reliability with qualification of IEC60068
Available in ±5%, ±10% and ±20% tolerance
Applications
Consumer Electronics, Portable Devices, Power Management, Industrial

Package Includes:

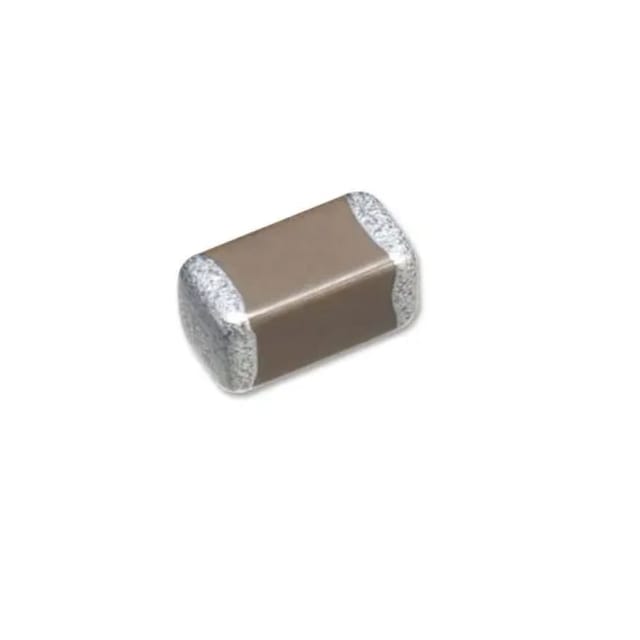

1 x CC0603KRX7R9BB221-YAGEO-SMD Multilayer Ceramic Capacitor, 220 pF, 50 V, 0603 [1608 Metric], ± 10%, X7R, CC Series
