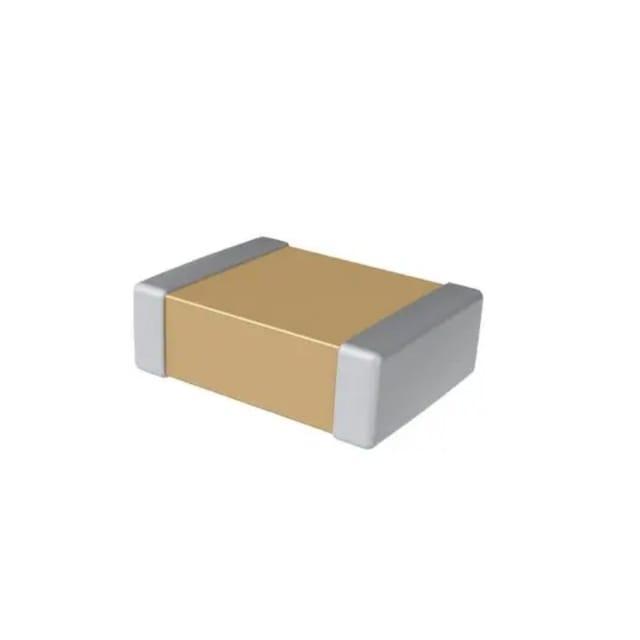

C0603C471K3RACTU-KEMET-SMD Multilayer Ceramic Capacitor, 470 pF, 25 V, 0603 [1608 Metric], ? 10%, X7R, C Series KEMETKEMET?s X7R dielectric features a 125?C maximum operating temperature and is considered ?temperature stable.? The X7R dielectric is a Class II material. Components of this classification are fixed, ceramic dielectric capacitors suited for bypass and decoupling applications or for frequency discriminating circuits where Q and stability of capacitance characteristics are not critical. X7R exhibits a predictable change in capacitance with respect to time and voltage and boasts a minimal change in capacitance with reference to ambient temperature. Capacitance change is limited to ?15% from ?55?C to +125?C.

Note: Images for reference only. For more technical information, please refer to datasheet in Attachments.

Specifications:

1. Capacitance:: 470pF
2. Voltage(DC):: 25V
3. Capacitor Case / Package:: 0603 [1608 Metric]
4. Capacitance Tolerance:: 10%
5. Dielectric Characteristic:: X7R
6. Product Range:: C Series KEMET
7. Product Length:: 1.6mm
8. Product Width:: 0.85mm
9. Capacitor Terminals:: Wraparound
10. Operating Temperature Min:: -55°C
11. Operating Temperature Max::  125°C
12. MSL:: MSL 1 – Unlimited

Package Includes:

1 x C0603C471K3RACTU-KEMET-SMD Multilayer Ceramic Capacitor, 470 pF, 25 V, 0603 [1608 Metric], ? 10%, X7R, C Series KEMET
