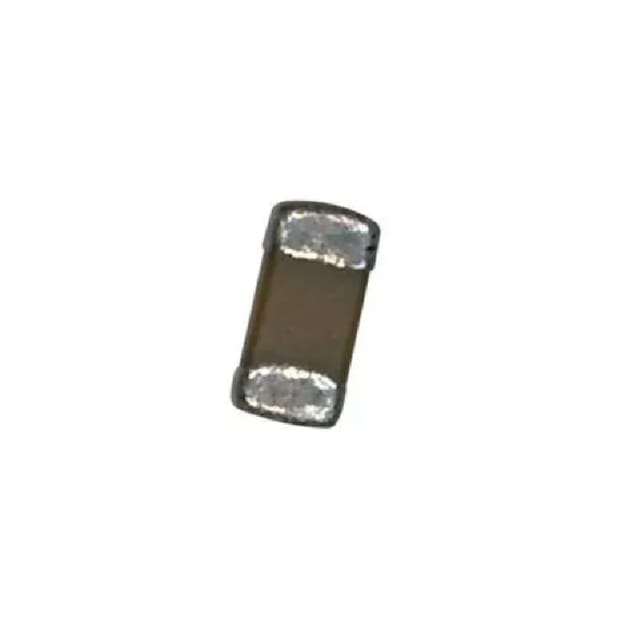

C0603C102K8RACTU-KEMET-SMD Multilayer Ceramic Capacitor, 1000 pF, 10 V, 0603 [1608 Metric], ? 10%, X7R, C Series KEMET. KEMET?s X7R dielectric features a 125?C maximum operating temperature and is considered ?temperature stable.? The X7R dielectric is a Class II material. Components of this classification are fixed, ceramic dielectric capacitors suited for bypass and decoupling applications or for frequency discriminating circuits where Q and stability of capacitance characteristics are not critical. X7R exhibits a predictable change in capacitance with respect to time and voltage and boasts a minimal change in capacitance with reference to ambient temperature. Capacitance change is limited to ?15% from ?55?C to +125?C.

Note: Images for reference only. For more technical information, please refer to datasheet in Attachments.

Specifications:

Capacitance:: 1000pF
Voltage(DC):: 10V
Capacitor Case / Package:: 0603 [1608 Metric]
Capacitance Tolerance:: 10%
Dielectric Characteristic:: X7R
Product Range:: C Series KEMET
Product Length:: 1.6mm
Product Width:: 0.85mm
Capacitor Terminals:: Wraparound
Operating Temperature Min:: -55?C
Operating Temperature Max:: 125?C
Qualification:: –
MSL:: MSL 1 – Unlimited

Package Includes:

1 x C0603C102K8RACTU-KEMET-SMD Multilayer Ceramic Capacitor, 1000 pF, 10 V, 0603 [1608 Metric], ? 10%, X7R, C Series KEMET
