KEMET’s C Series C0G dielectric features a 125°C maximum operating temperature and is considered “stable”. The C0G dielectric is a Class I material. Components of this classification are temperature compensating and are suited for resonant circuit applications or those where Q and stability of capacitance characteristics are required. C0G exhibits no change in capacitance with respect to time and voltage and boasts a negligible change in capacitance with reference to ambient temperature. Capacitance change is limited to ±30 ppm/ºC from −55°C to +125°C.
Operating temperature range from −55°C to +125°C
Capacitance range includes E24 decade values from 0.5 pF up to 0.47 μF
DC voltage rating of 10V to 250V
Operating temperature range -55°C to 125°C
High thermal stability
High ripple current capability
Extremely low ESR and ESL
No piezoelectric noise
No capacitance decay with time
No piezoelectric noise
Capacitance change is limited to ±30ppm/°C from -55 to 125°C
Capacitance offerings ranging from 0.5pF up to 0.47μF
Applications
Industrial, Consumer Electronics, Portable Devices, Power Management

Package Includes:

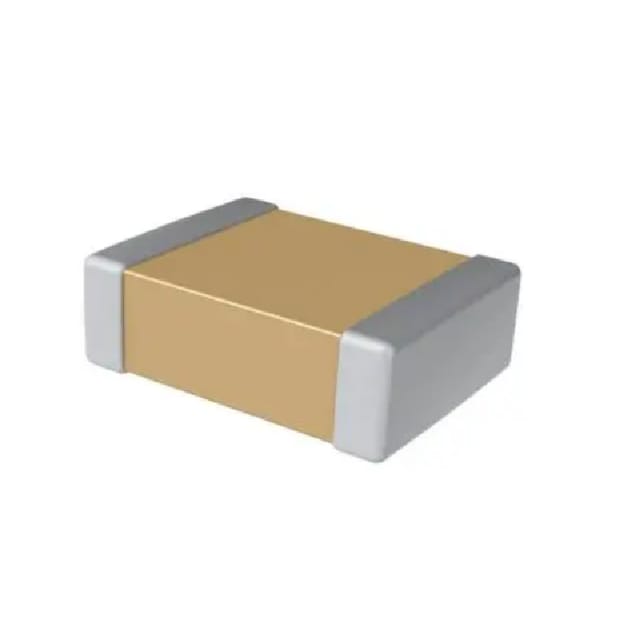

1 x C0402C331J5GACTU-KEMET-SMD Multilayer Ceramic Capacitor, 330 pF, 50 V, 0402 [1005 Metric], ± 5%, C0G / NP0, C Series KEMET
