The X8G Class I dielectric features a 150°C maximum operating temperature. X8G exhibits no change in capacitance with respect to voltage and boasts a minimal change in capacitance with reference to ambient temperature. It is a suitable replacement for higher capacitance and larger footprint devices that fail to offer capacitance stability. Capacitance change is limited to ±30ppm/°C from -55°C to +150°C. These capacitors are widely used in automotive for under the hood and harsh environment as well as general high temperature applications.
–55°C to +150°C operating temperature range
High thermal stability
High ripple current capability
Automotive grade (AEC-Q200)
Non-polar device, minimizing installation concerns
Automotive (AEC-Q200) grade qualified
100% pure matte tin-plated termination finish that allowing for excellent solderability
Replacement for higher capacitance/larger footprint devices that fail to offer capacitance stability

Package Includes:

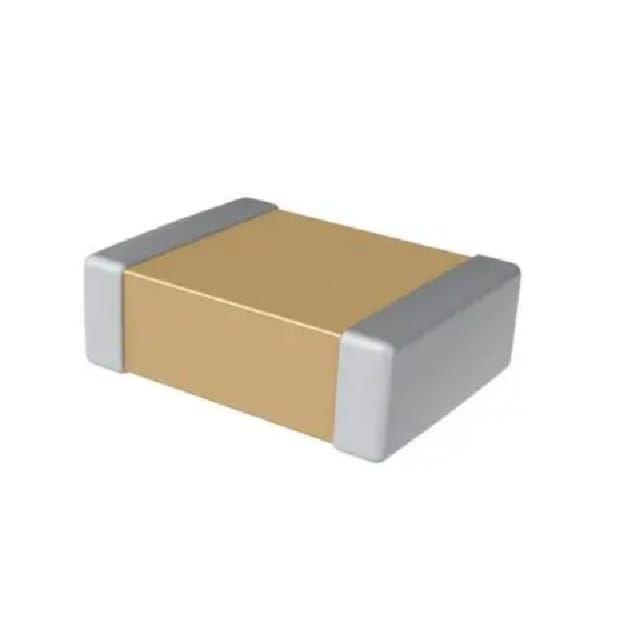

1 x C0402C102K5TACAUTO-KEMET-SMD Multilayer Ceramic Capacitor, 1000 pF, 50 V, 0402 [1005 Metric], ± 10%, X8G, X8G 150°C Series
