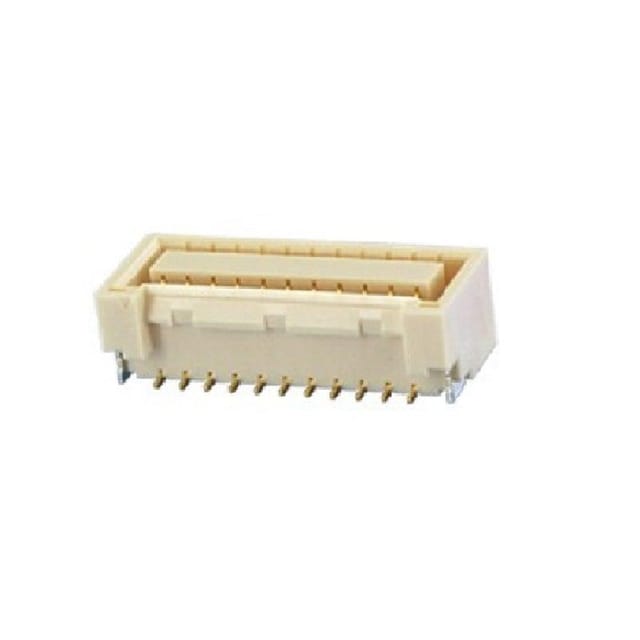

BM20B-GHDS-G-TF(LF)(SN)-JST-2x10P 20P GHD Gold 10 -25℃~+85℃ 1A 2 1.25mm Phosphor Bronze Standing paste SMD,P=1.25mm Wire To Board Connector ROHS.2x10P 20P GHD Gold 10 -25℃~+85℃ 1A 2 1.25mm Phosphor Bronze Standing paste SMD,P=1.25mm Wire To Board Connector ROHS

Note: Images for reference only.

Specifications:

Y-Width of Bottom Edge on Board: 7.35mm
Pins Structure: 2x10P
Number of Pins: 20P
Reference Series: GHD
Contact Plating: Gold
Row Spacing: –
Number of PINs Per Row: 10
Operating Temperature Range: -25℃~+85℃
Current Rating (Max): 1A
Plastic Material: PA9T
Colour: White
Supplementary Features: Auxiliary soldering legs
Number of Rows: 2
Flame Retardant Rating: UL94V-0
Pitch: 1.25mm
Rated Voltage (Max): 50V
Contact Material: Phosphor Bronze
X-Length of Bottom Edge on Board (Spacing Line): 15.75mm
Z-Height of the Board: 5mm
Mounting Style: Standing paste

For detailed specifications, please refer to datasheet in Attachments.

Package Includes:

1 x BM20B-GHDS-G-TF(LF)(SN)-JST-2x10P 20P GHD Gold 10 -25℃~+85℃ 1A 2 1.25mm Phosphor Bronze Standing paste SMD,P=1.25mm Wire To Board Connector ROHS
