Description

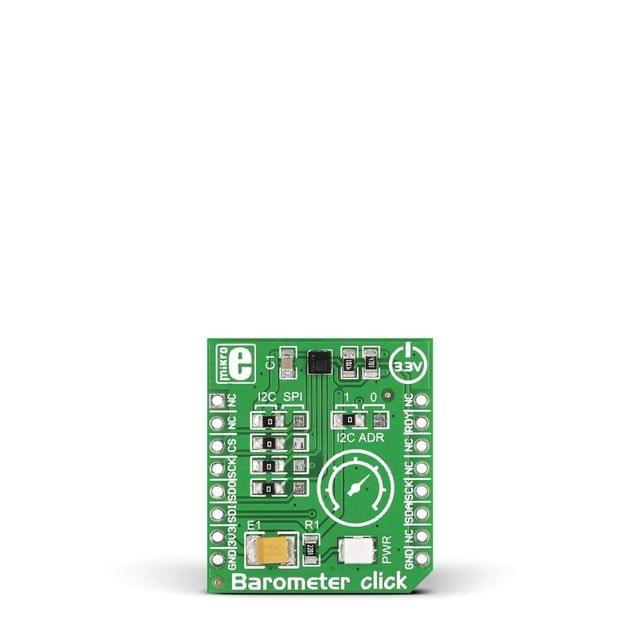

Barometer click carries the LPS25HB IC, which is a piezoresistive absolute pressure sensor with a measurement range from 260 to 1260 hPa (with a 24-bit resolution output). It’s a high precision sensor: n high resolution mode it can measure pressure within 0.01 hPa RMS. A low resolution mode can be implemented to reduce power consumption. Barometer click can communicate with the target board MCU either through I2C or SPI pins (which is specified by soldering onboard jumpers in appropriate position). An interrupt pin is also available, which can be configured either as Data Ready (sends signal when pressure value changes) or as a threshold trigger (sends signal when specified high or low pressure value is reached). The board uses a 3.3V power supply only.
Type | Pressure,Altitude |
Applications | Enhancing GPS functionality, altitude measurement for wearables, weather station equipment etc. |
On-board modules | LPS25HB IC |
Key Features | 260 to 1260 hPa measurement range (24-bit resolution output) |
Key Benefits | Precision: 0.01 hPa RMS in high resolution mode. Configurable, multifunctional interrupt pin |
Interface | SPI,GPIO,I2C |
Input Voltage | 3.3V |
Compatibility | mikroBUS |
Click board size | S (28.6 x 25.4 mm) |
Description
Barometer click carries the LPS25HB IC, which is a piezoresistive absolute pressure sensor with a measurement range from 260 to 1260 hPa (with a 24-bit resolution output). It’s a high precision sensor: n high resolution mode it can measure pressure within 0.01 hPa RMS. A low resolution mode can be implemented to reduce power consumption. Barometer click can communicate with the target board MCU either through I2C or SPI pins (which is specified by soldering onboard jumpers in appropriate position). An interrupt pin is also available, which can be configured either as Data Ready (sends signal when pressure value changes) or as a threshold trigger (sends signal when specified high or low pressure value is reached). The board uses a 3.3V power supply only.
Type | Pressure,Altitude |
Applications | Enhancing GPS functionality, altitude measurement for wearables, weather station equipment etc. |
On-board modules | LPS25HB IC |
Key Features | 260 to 1260 hPa measurement range (24-bit resolution output) |
Key Benefits | Precision: 0.01 hPa RMS in high resolution mode. Configurable, multifunctional interrupt pin |
Interface | SPI,GPIO,I2C |
Input Voltage | 3.3V |
Compatibility | mikroBUS |
Click board size | S (28.6 x 25.4 mm) |
