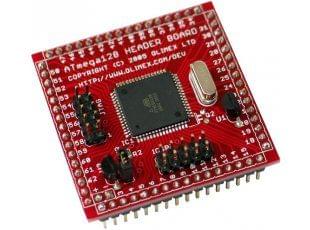

AVR-H128-C
AVR-H128-C

Description of product

FEATURES

  • ATMega128-16AU microcontroller with 128 KB Flash, 4KB RAM, 4 KB EEPROM
  • ICSP 5x2 pin connector for in-circuit programming with AVR-PG1 or AVR-PG2
  • JTAG 5x2 pin connector for in-circuit debugging with AVR-JTAG or AVR-JTAG-USB
  • 16MHz scillator circuit
  • 32768 Hz oscillator circuit
  • Reset IC ZM33064
  • +5V voltage regulator LM78L05
  • Power supply filtering capacitors
  • Extension pin headers for each uC pin
  • FR-4, 1.5 mm (0,062"), green soldermask, white silkscreen component print
  • Dimensions 47x47 mm (1.85x1.85")
