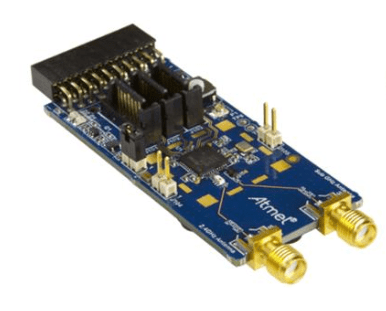

ATREB215-XPRO-A Extension Board

Description of product

This wireless extension board for Xplained PRO is targeted for evaluating the features of the multi-band radio transceiver AT86RF215 in the 863-928 MHz band and the 2.4 GHz band. AT86RF215 is compliant to IEEE 802.15.4-2011, IEEE 802.15.4g-2012, and ETSI TS 102 887-1.

Features
  • AT86RF215 transceiver
  • Two SMA connectors for operation at 863-928 MHz and 2.4 GHz
  • Digital IO
    • Xplained Pro extension header comprising the SPI interface of AT86RF215
    • SATA connectors comprising the I/Q interface of AT86RF215
    • Current measurement header
    • One reset button
    • Two user LEDs
  • Supported with Performance Analyzer in Atmel Studio.
