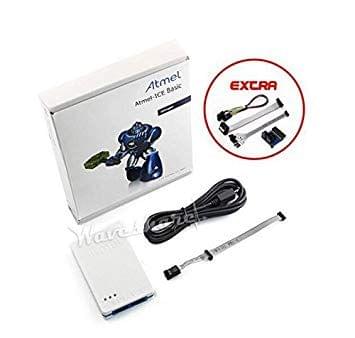

Atmel-ICE is a powerful development tool for debugging and programming Atmel ARM® Cortex®-M based Atmel SAM and AVR® microcontrollers with on-chip debug capability.

Key Features

  • Supports JTAG, SWD, PDI, TPI, aWire, SPI and debugWIRE interfaces
  • Full source-level debugging in Atmel Studio
  • Supports all built-in hardware breakpoints in the target microcontroller (number depends on the OCD module in the target)
  • Up to 128 software breakpoints
  • 1.62 to 5.5V target operation
  • USB powered
  • Provides both ARM Cortex Debug Connector (10-pin) pin-out and AVR JTAG connector pin-out

Supported Software

  • Perfectly supports Atmel Studio 6.2 or higher version
  • Directly supports ICC8AVR or higher version
  • Supports programming HEX files generated by ICCAVR, CVAVR, IAR, etc.

Supported Devices

  • Programming and on-chip debugging of all Atmel AVR 32-bit MCUs on both JTAG and aWire interfaces
  • Programming and on-chip debugging of all Atmel AVR XMEGA® family devices on both JTAG and PDI 2-wire interfaces
  • JTAG and SPI programming and debugging of all Atmel AVR 8-bit MCUs with OCD support on either JTAG or debugWIRE interfaces
  • Programming and debugging of all Atmel SAM ARM Cortex-M based MCUs on both SWD and JTAG interfaces
  • Programming of all Atmel tinyAVR® 8-bit MCUs with support for the TPI interface

For more details, please visit UC3, Mega, SAM , Tiny, Xmega

Specifications

Interface voltage1.62V ~ 5.5V
JTAG clock32kHz ~ 7.5MHz
PDI clock32kHz ~ 7.5MHz
debugWIRE baudrate4kbit/s ~ 0.5Mbit/s
aWire baudrate7.5kbit/s ~ 7Mbit/s
SPI clock8kHz ~ 5MHz
SWD clock32kHz ~ 2MHz
PC interfaceUSB 2.0 high speed

Physical Interfaces

Atmel-ICE Connection Options

Note :
While connecting the adapter board to a target, please pay attention to the Pin 1 (indicated by white spot or square solder pad).
The adapter board included in Atmel-ICE-B2 is compatible with the official one in the Atmel-ICE Full Kit.

① 10-pin AVR JTAG header

② 6-pin AVR ISP/debugWIRE/PDI/aWire/TPI header

SPI/debugWIRE

PDI

aWire

TPI

10-pin AVR ISP header is also available through our extra free 6-pin to 10-pin ISP cable

③ 10-pin SAM JTAG/SWD header


TT-WS-14638
in stockINR 11956
