ATA6563 click
ATA6563 click

Description of product

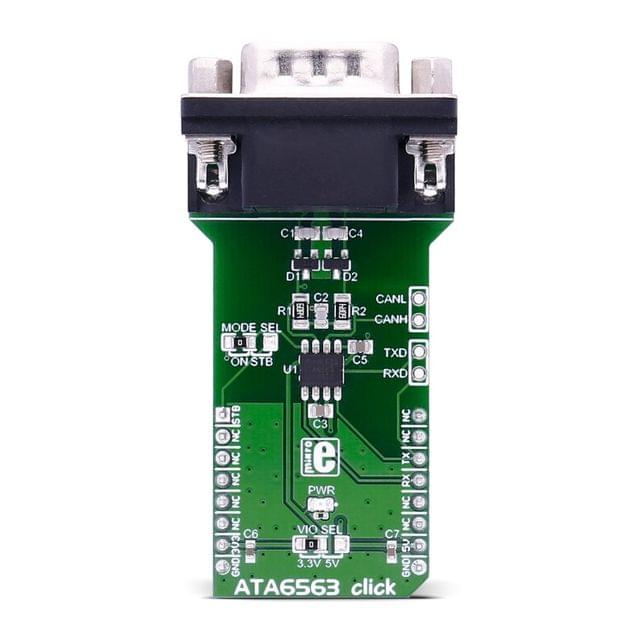

ATA6563 click carries the ATA6563 high-speed CAN transceiver. The click is designed to run on a 5V power supply. Use the VIO SEL jumper for selecting the 3.3V or 5V logic level. It communicates with the target microcontroller over UART interface, with additional functionality provided by the AN pin on the mikroBUS™ line.

ATA6563 features

The ATA6563 is a high-speed CAN transceiver that provides an interface between a controller area network (CAN) protocol controller and the physical two-wire CAN bus.

The transceiver is designed for high-speed (up to 5 Mbps) CAN applications in the automotive industry, providing differential transmit and receive capability to (a microcontroller with) a CAN protocol controller. It offers improved electromagnetic compatibility (EMC) and electrostatic discharge (ESD) performance.

The transceiver is CAN FD (Flexible data-rate) ready, meaning it has increased data rates in comparison with classic CAN.

How the click works

ATA6563 click is connected to a CAN bus via the DB9 cable, which then communicates with the network.


ApplicationsClassical CAN and CAN FD networks in Automotive, Industrial, Aerospace, Medical and Consumer applications.
On-board modulesATA6563 high-speed CAN transceiver from Microchip
Key FeaturesOptimized for CAN FD at 2 and 5 Mbps operation, maximum propagation delay: 210ns; the chip supports CAN 2.0 and CAN with flexible data rates.
Input Voltage3.3V or 5V
Click board sizeL (57.15 x 25.4 mm)


 ATA6563 click schematic

 LibStock: ATA6563 click library
