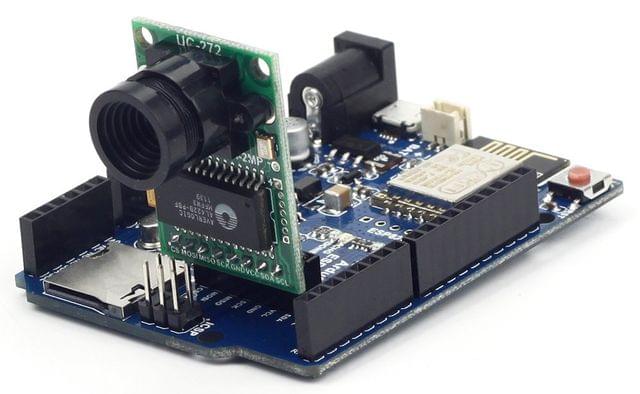

Arducam ESP8266 UNO Kit Included Development Board OV2640 Mini Module Camera Shield and Clear Acrylic Case Compatible with Arduino UNO R3

Description of product

Arducam now released a ESP8266 based Arduino board for Arducam mini camera modules while keeping the same form of factors and pinout as the standard Arduino UNO R3 board. The high light this ESP8266 board is that it well mates with Arducam mini 2MP and 5MP camera modules, supports Lithium battery power supply and recharging and with build in SD card slot. It can be an ideal solution for home security and IoT camera applications.

Features:

ESP8266 UNO:

  • Build in ESP8266-12E Module
  • 11 digital input/output pins, IO ports are 3.3V tolerant
  • 1 analog input(3.2V max input)
  • Arducam Mini 2MP/5MP camera interface
  • Lithium battery recharging 3.7V/500mA max
  • Building in SD/TF card socket
  • 7-12V power jack input
  • Build in micro USB-Serial interface
  • Compatible with Arduino IDE

Note that the SD/TF card CS pin is shared with UART TX signal, so the UART and the SD/TF can't be used at the same time.

OV2640 Arducam Mini Module Camera Shield:

  • Can be used in MCU, Raspberry Pi, ARM, DSP, FPGA platforms
  • 2 megapixels image sensor OV2640
  • M12 mount or CS mount lens holder with changeable lens options
  • IR sensitive with proper lens combination
  • I2C interface for the sensor configuration,SPI interface for camera commands and data stream
  • All IO ports are 5V/3.3V tolerant
  • Support JPEG compression mode, single and multiple shoot mode, one time capture multiple read operation, burst read operation, low power mode and etc.
  • Well mated with standard Arduino boards
  • Provide open source code library for Arduino, STM32, Chipkit, Raspberry Pi, BeagleBone Black
  • Small form of factor

Package Including:

1pcs Arducam ESP8266 UNO Board
1pcs OV2640 Arducam Mini Module Camera Shield
1pcs Clear Acrylic Case
