Description:

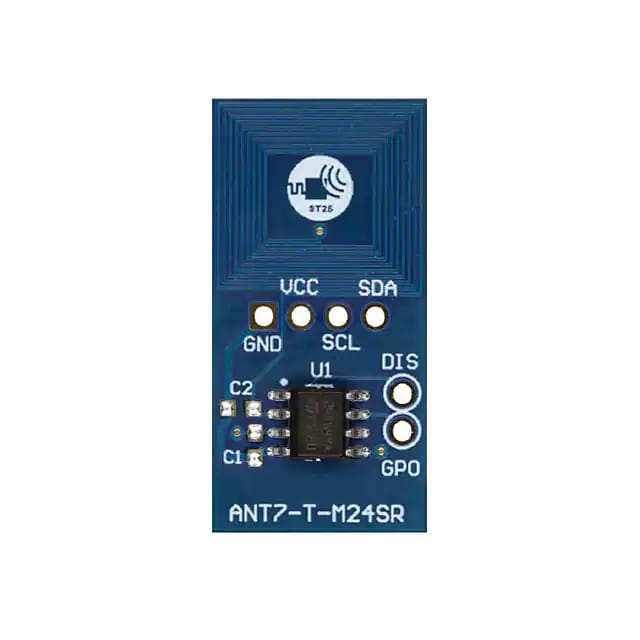

The ANT7-T-M24SR64 is a ready-to-use demonstration board intended to evaluate the M24SR64-Y dual interface Electrically Erasable Programmable Memory (EEPROM), a device featuring an I2C interface that can be operated from an external power supply. The M24SR64-Y is a contactless memory, powered by the received carrier electromagnetic field.

Features:

• M24SR64-Y dual interface EEPROM
• 14 mm x 14 mm, 13.56 MHz dual layer etched antenna
• I2C test points
• Configurable General Purpose Output (GPO) to indicate an ongoing RF or I2C operation
  available on test point
• RF disable test point (DIS) for activation/deactivation of RF commands

Datasheets: ANTENNA REF BOARD M24SR64-YPdf
