616fde017c386119809f2a76 Adjustable Integrated DC-DC Module- LM2596S https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/616fddf33ed5ee1a0a870427/adjustable-integrated-dc-dc-module-lm2596s_1.jpg

Description:

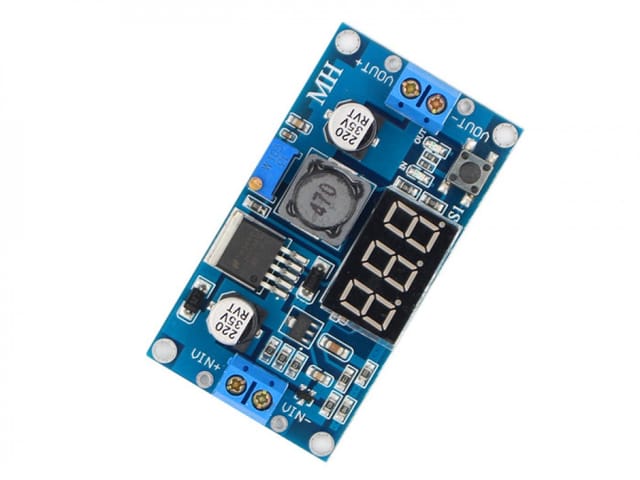

This is a voltage meter based on the DC-DC module – LM2596S. With this function, you can monitor your project much easier. The voltage meter can measure the input voltage or output voltage, which is adjustable by the potentiometer, with a precision of ±0.1V. Note that the voltage meter would not work if the input voltage below 4V. Press the button to switch voltage to measure, between the input voltage and output voltage. There are also 2 LEDs (IN and OUT) to indicate which voltage is measuring by the voltage meter.

You can also close the voltage meter by long-pressing the button (1S< press time < 4S) after you release the button, the voltage meter would be close.

This module can be also calibrated manually as the following method:
1. Power up the module with a stable and accurate power supply, such as a 5V power supply, and long-pressing (press time > 4S) the button makes the module enter the calibration model, after releasing the button, the related LED would light up to indicate which voltage is now calibrating, and the numeric display blinks the correction value. (Default: 0.0V)
2. Short press the button to change the correction value(-0.5V ~ 0.5V), for example, if your power supply is 5V, but the result of the voltage meter is 4.8, you need to set the correction value to +0.2V.
3. Long press (press time ≈ 2S), to store the input voltage correction value, the module will enter the output voltage correction value calibration model automatically.
4. Calibrate the output voltage in the same way above; The correction value will be stored in non-volatile memory.

Features:

  • Input Voltage: 2.5V~36V (1.5V higher than the output at least)
  • Measurement Accuracy: ±0.1V
  • Adjustable Output Voltage: 1.25V~35V
  • Output Current: 3A
  • Dimension: 66mm x 35mm x 14mm

Package List:

  • 1 x Adjustable Integrated DC-DC Module- LM2596S

TT-MF-MPA12596S
