Description of product

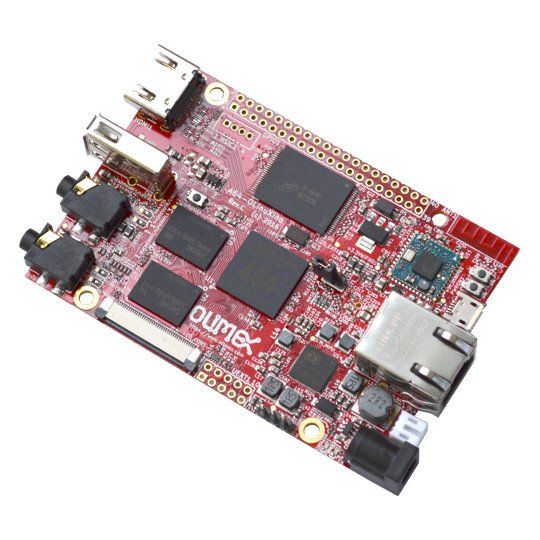

Open source hardware board that runs Linux and Android. Entirely designed with open source software CAD tools.

There are four variants:

A64-OLinuXino-1G with 1GB RAM but NO flash and NO WiFi/BLE connectivity
A64-OLinuXino-1Ge4GW with 1GB RAM and 4GB extra eMMC flash and extra WiFi/BLE module
A64-OLinuXino-1Gs16M with 1GB RAM, no flash, no WiFi/BLE, extra 16MB SPI flash
A64-OLinuXino-2Ge8G-IND with 2GB RAM and 8GB extra flash but NO WiFi/BLE connectivity; with components that work in the industrial -40+85C temperature range
Allwinner A64 - 1.2 GHz Quad-Core ARM Cortex-A53 64-bit
Memory: 1GB or 2GB RAM DDR3L @ 672Mhz
0/4/16GB eMMC flash memory for storage and boot
MicroSD card connector for cards up to 32GB
Debug: serial UART debug header with 0.1" pins
Wired connectivity: 10/100/1000Mbps GbE Ethernet
Wireless connectivity: popular on-board WIFI and bluetooth 4.0 BLE module with built-in antenna (only available in the A64-OLinuXino-1G4GW version)
Monitor output: HDMI output
Display output: LCD output on 40-pin ribbon cable connector and MIPI DSI with 20-pin ribbon connector
Audio: headphone output and microphone input with phone jacks (can be changed to Line-in and Line-out via jumpers)
External power: power jack for 5V exeternal power supply
Battery power option and built-in charger circuit: the board can be fully powered via 3.7 Li-Po battery
USB connectivity: USB-OTG support on microUSB connector; USB host on USB type A connector; USB HSIC signals available on 4-pin header drills @ 0.1" step
LEDs: power indication LED, battery charging status LED, user-programmable LED
GPIO expansion: provided 40-pin header drills @ 0.1" step with useful signals (like CSI camera interface and GPIOs)
UEXT expansion: provided 10-pin header drills @ 0.1" step for UEXT expansion
optional SPI Flash on SO8 connector
RTC battery expansion: pad provided for powering the RTC of AXP803
Buttons: UBOOT button; RESET button; POWER button
Four mounting holes
PCB dimensions: (90.0 x 62.5)mm ~ (3.5 x 2.5)"

Quick start with A64-OLinuXino
A64-OLinuXino Rev.C schematic in PDF format
General board dimensions
GitHub repository with CAD files and BOM
Torrent of latest official Ubuntu image, HDMI output set per default
Android images for microSD card:
HDMI video output or 7 inch LCD output
How to build the official Linux image and once done how to prepare the card
GPIO control Python module for the board available at PyPI
Servo module control library and example
