Description of product

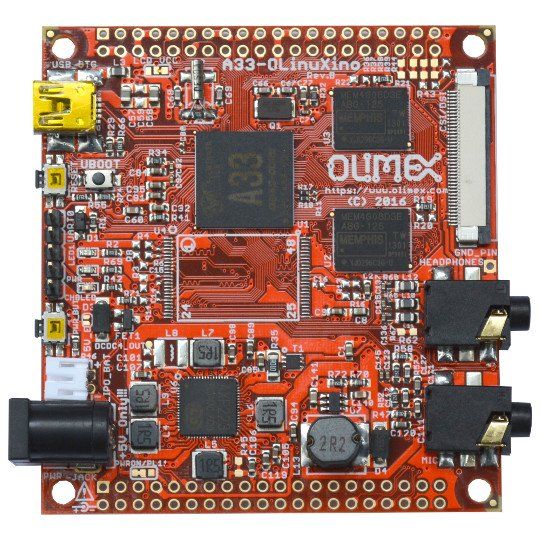

A33-OLinuXino is Open Source Hardware single board computer with A33 Quad core Cortex-A7 processor, Mali 400 GPU, OpenGL ES 2.0, RGB/LVDS, MIPI DSI interface for up to 1280x800 resolution displays, 5M/8M pixel CSI, HI-FI 100 dB Audio Codec.


  • A33 Quad Core Cortex-A7 running at 1.2Ghz
  • 1GB DDR3 RAM running at clock 432/360MHz
  • USB On-The-Go interface on USB mini connector
  • AXP223 PMU
  • Debug UART connector
  • LiPo battery charger
  • Step-up converter allow all peripherals including USB hosts to work properly on Li-Po battery power
  • Audio input for microphone
  • Audio output for headphones
  • Camera CSI / LCD MIPI  40 pin FPC connector
  • LCD 0.1" step 40 pin connector (not assembled on board)
  • GPIO 0.1" step 40 pin connector (not assembled on board)
  • Barrel power jack for external 5V supply
  • PCB dimensions: 66 x 71 mm
