NMB Technologies Corporation 942-PM55L-048-HHD0-ND
Sku: TT-DKEY-942-PM55L-048-HHD0-ND
₹6,554.88
Features
- Shipping in 10-12 Working Days
Description of product

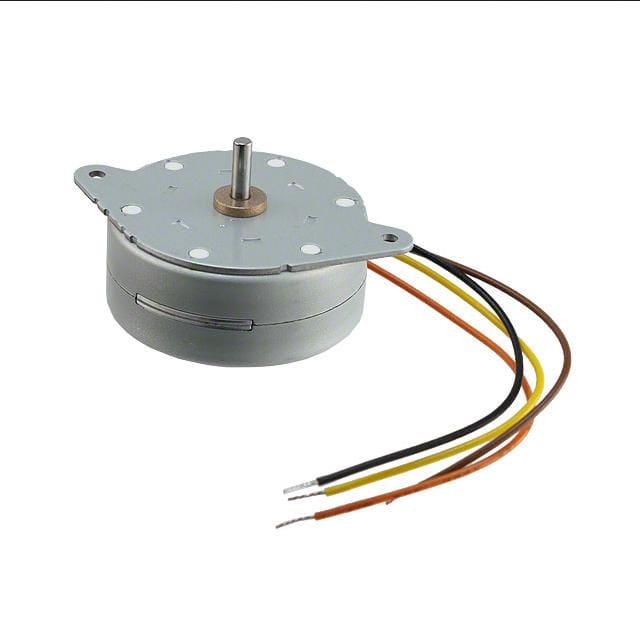

STEPPER MOTOR PM BIPOLAR 24V
Product Attributes:
| Series | PM |
| Product Status | Active |
| Type | Permanent Magnet |
| Coil Type | Bipolar |
| Voltage - Rated | 24VDC |
| Steps per Revolution | 48.0 |
| Step Angle | 7.5° |
| Accuracy | - |
| Torque - Holding (oz-in / mNm) | 23.4 / 167 |
| Size / Dimension | Round - 2.160" Dia (55.00mm) |
| Diameter - Shaft | 0.157" (4.00mm) |
| Length - Shaft and Bearing | 0.591" (15.00mm) |
| Mounting Hole Spacing | 2.560" (65.00mm) |
| Termination Style | Wire Leads |
| Operating Temperature | - |
| Coil Resistance | 5.5 Ohms |
| Features | Round Shaft |
| Current Rating (Amps) | 600 mA |
| NEMA Frame Size | - |
