NMB Technologies Corporation 942-M17PMK440CMB03-ND
Sku: TT-DKEY-942-M17PMK440CMB03-ND
₹40,723.2
Features
- Shipping in 10-12 Working Days
Description of product

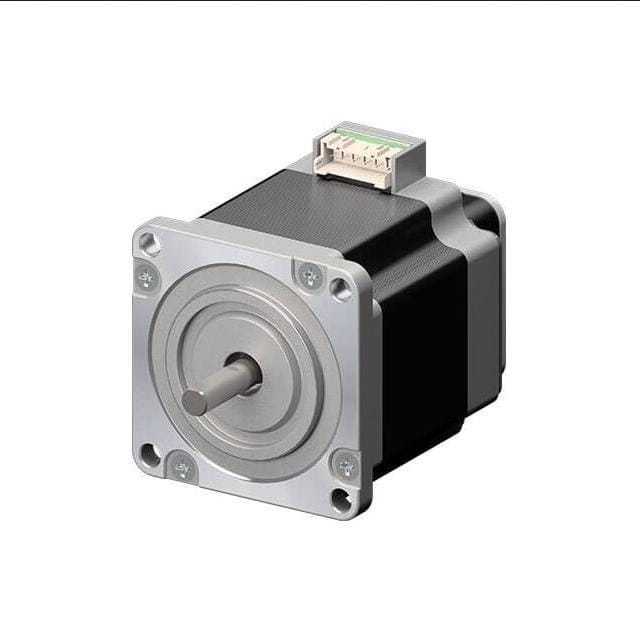

STEP MOTOR PM GEARED BIPOLAR 24V
Product Attributes:
| Series | - |
| Product Status | Active |
| Type | Hybrid |
| Coil Type | Bipolar |
| Voltage - Rated | 24VDC |
| Steps per Revolution | 200.0 |
| Step Angle | 1.8° |
| Accuracy | - |
| Torque - Holding (oz-in / mNm) | 72.22 / 510 |
| Size / Dimension | Square - 1.654" x 1.654" (42.00mm x 42.00mm) |
| Diameter - Shaft | 0.197" (5.00mm) |
| Length - Shaft and Bearing | 0.790" (20.07mm) |
| Mounting Hole Spacing | 1.220" (30.99mm) |
| Termination Style | Connector |
| Operating Temperature | - |
| Coil Resistance | 1.2 Ohms |
| Features | - |
| Current Rating (Amps) | 2 A |
| NEMA Frame Size | 17 |
