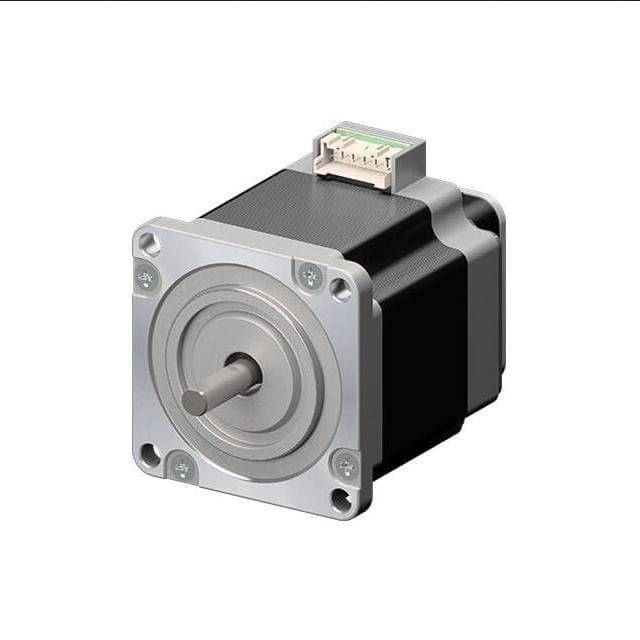

NMB Technologies Corporation 942-M11PMK241CMB03-ND
Sku: TT-DKEY-942-M11PMK241CMB03-ND
₹40,723.2
Features
- Shipping in 10-12 Working Days
Description of product
STEP MOTOR PM GEARED BIPOLAR 24V
Product Attributes:
| Series | - |
| Product Status | Active |
| Type | Hybrid |
| Coil Type | Bipolar |
| Voltage - Rated | 24VDC |
| Steps per Revolution | 200.0 |
| Step Angle | 1.8° |
| Accuracy | - |
| Torque - Holding (oz-in / mNm) | 28.32 / 200 |
| Size / Dimension | Square - 1.102" x 1.102" (28.00mm x 28.00mm) |
| Diameter - Shaft | 0.197" (5.00mm) |
| Length - Shaft and Bearing | 0.790" (20.07mm) |
| Mounting Hole Spacing | 0.910" (23.11mm) |
| Termination Style | Connector |
| Operating Temperature | - |
| Coil Resistance | 2.5 Ohms |
| Features | - |
| Current Rating (Amps) | 1.5 A |
| NEMA Frame Size | 11 |
